Wamet WPS80

Preis ohne MwSt.

Images11
Wamet WPS80 Andere Bohrgeräte
Wamet WPS80 Andere Bohrgeräte
Wamet WPS80 Andere Bohrgeräte
FavoriteFavoriten
shareTeilen
Save searchSuche speichern
Drucken

INFO

Produktkategorie
Andere Bohrgeräte
Marke / Model
Wamet WPS80
Herstellungsjahr
2005
Land
Polen
Mascus ID
B25708B2

PREISANGABE

Währung auswählen

DETAILS

Produktionsland
Polen
Lieferbedingungen
EXW
weitere Informationen

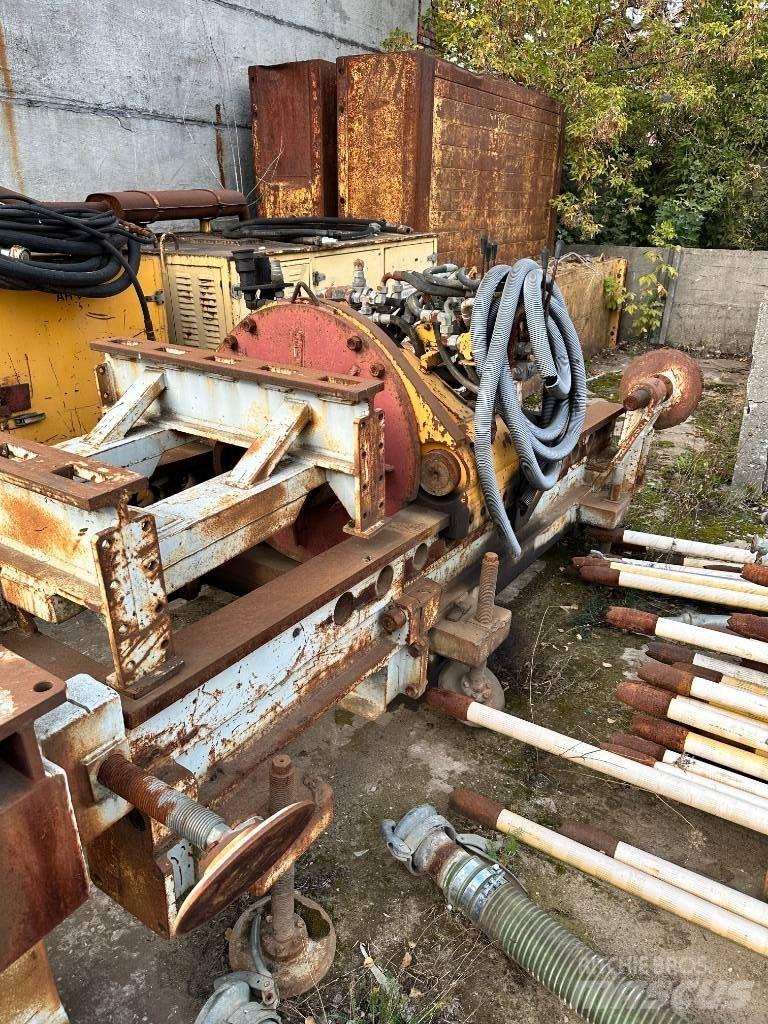

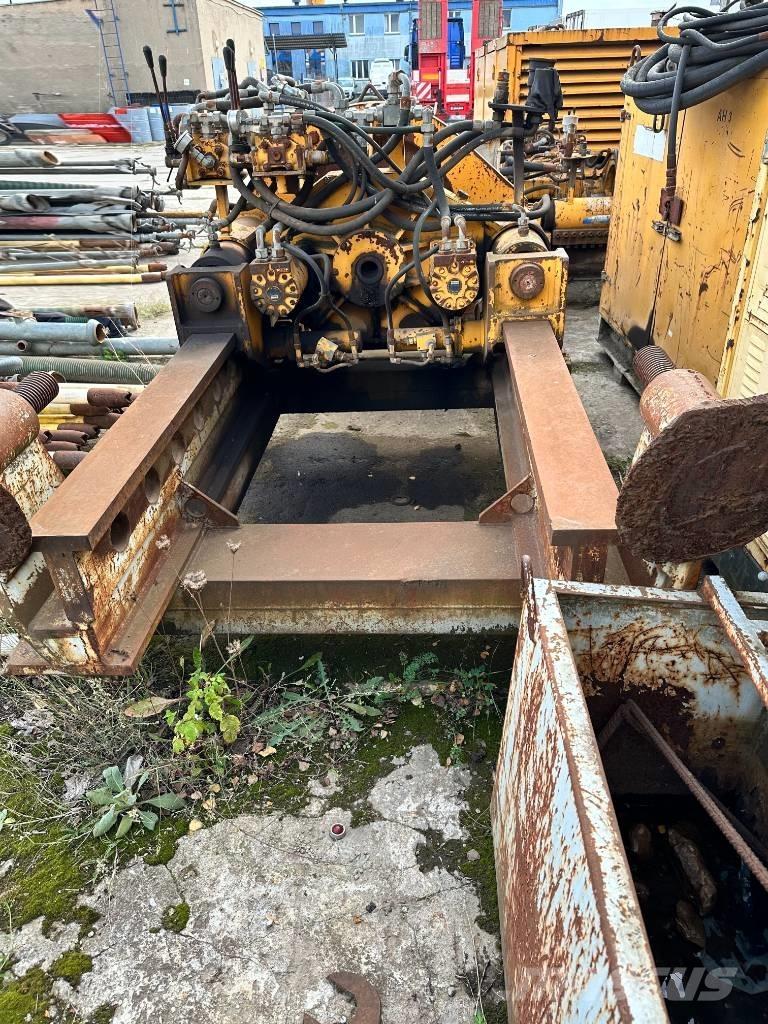

I will sell a WPS-80 auger drilling rig with a hydraulic unit and additional equipment. Picking: 1. WPS-80 drilling rig 2. AH-120 hydraulic unit 3. Additional frame 1 m, 2 pcs, allows drilling with pipe modules L = 1 m, 2 m, 3 m 4. Hydraulic supply hoses, 1 set. Remote: 5. Pilot drilling poles, 50 m 6. Pilot head, 1 pc 7. Optical navigation (theodolite with adjustable base, camera, monitor + LED target) 8. Scrubber pump Tools: 9. Auger (DN200) 230mm x 1m, 50m 10, Widia head for 273mm pipe, 1 pc 11. Auger (DN250) 280mm x 1m, 43m 12. Widia head for 355mm pipe, 1 pc 13. Auger (DN300) 360mm x 1m, 55m 14. Widia head for 406mm pipe, 1 pc other small elements such as push rings. The set does not include directional steel pipes. They are sold separately upon request. Drilling rig WPS-80 (Version with hydraulic locks) • Torque 1600daNm/20MPa • Two geared rotation motors -Parker • Pushing force 1200kN/28MPa • Stroke of main cylinders ~350mm • Weight: 2500kg on the basic track • Length: 2650mm • Width: ~1600mm 90kW hydraulic unit AH-120 • Two independent high pressure pumps • Hydraulic oil cooler. • Engine SW400/Andoria/Leyland, 6 cyl. Additional equipment • • Power cords 12m 1 set. • • 114 spindle-rod adapter • • Spindle-bore connector S65, • • Push rings Additional track 1m 2pcs (enables work with 1m, 2m, 3m modules) • pipe support included The drilling rig was used occasionally. She's functional. In good condition. Equipment available for viewing in Zabrze 41-807 Contact: WhatsApp, e-mail...Mehr anzeigen

NODIGMARKET24 Damian Sobczak

Handlowa 6 41-807 Zabrze Śląskie Polen
