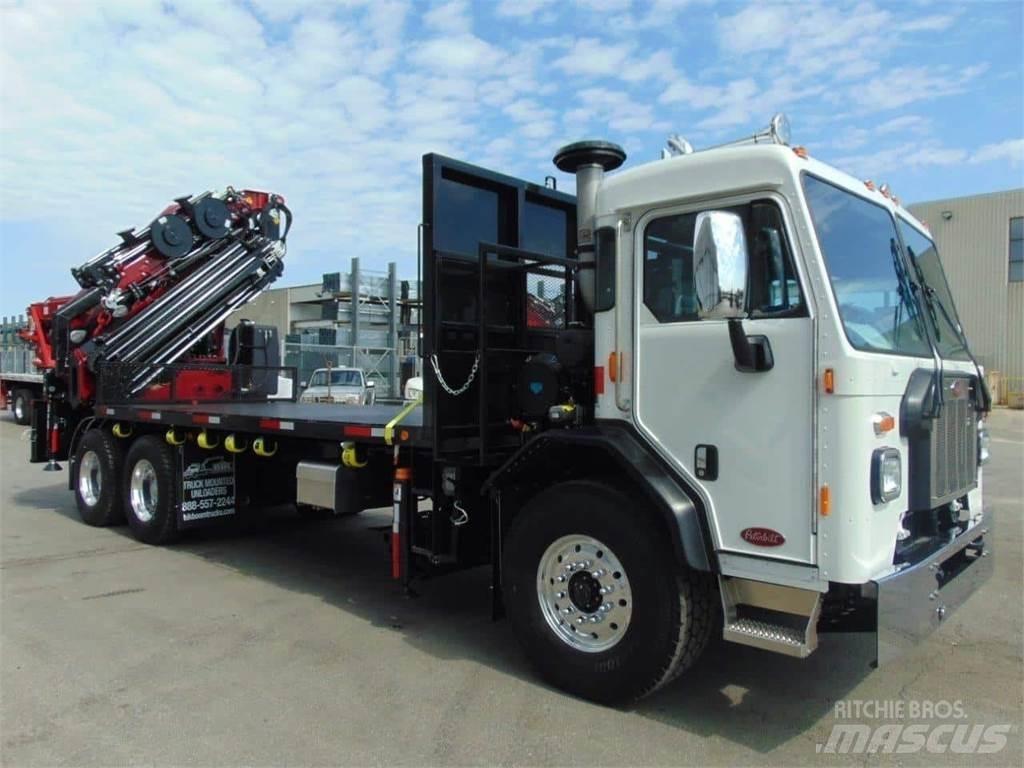

BIK TC-98

Name: BIK TC-98
Brand: BIK
SKU: AFEF959C
Availability: InStock

Preis ohne MwSt.

Preis auf Anfrage

Favoriten

Suche speichern

Drucken

INFO

Produktkategorie

Andere Krane

Marke / Model

BIK TC-98

Zustand

Neu / nicht gebraucht

Maschinen Standort

Milford, Massachusetts

Land

USA

Allgemeine Bewertung

Mascus ID

AFEF959C

DETAILS

weitere Informationen

BOOM DETAILS New – BIK Tree-Care Series TC-98 – 54.5 ton/m Knuckle Boom 6 ext Knuckle Boom w/Detachable 3 ext jib + 1-grapple extn Including (1) Grapple extension in jib, Boom Capacity of 2,230 lbs ... 98’ Vertical Reach Main Boom Horizontal Capacity: 21,000 lbs ... 14’ 10,900 lbs ... 25’ 8” 6,800 lbs ... 38’ 8” 4,830 lbs ... 53’ 6” Jib Horizontal Capacity: 2,100 lbs ... 63’ 1,850 lbs ... 75’ 4” 1,700 lbs ... 82’ Grapple main extension to 86’ “Power-Link” connecting rods at First Boom and Knuckle, Double pilot operated on slewing and pilot check valves on all cylinders Planetary Gear Rotation Motor & Continuous Boom Rotation – for maximized slewing torque and reliability 15 Degree negative angle on main knuckle, 20 degree negative angle on jib – Hyd Extra Wide Main outriggers at base – 25’ 7” total span Auxiliary Stabilizers – Extra wide type – 21’ span , hyd out & down type at rear – Front Bumper Hyd Stabilizer – 100% stability 360 degrees Two Hydraulic Oil Coolers , high pressure return filter and 100 gal custom hydraulic oil tank with Enviro-Friendly AW-46 weight Hyd Oil Tandem pump / split valve pressure system for optimum speed for simultaneous multi function use DANFOSS Proportional Control Valve at Top Seat SCANRECO Proportional Radio Remote Control w/2 batteries, charger Engineer Stability load tested and certified Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components DECK DETAILS New – 17’ x 102” Steel Flat Deck: Steel headboard w/ Side Wrap Winches Steel Checker plate Floor Winch bar and holder Integral 6” sub-frame and extension at rear as torque box for boom with all proper engineered sheer platting X-braces & support Deck painted Black 2-Deck access Ladders at Headboard 2-Ladders at rear Reflectors and Mud-flaps 6 – Sliding Winches and track under deck TRUCK DETAILS New – Peterbilt 520 Cab-Over 3-axle Diesel Truck: 64,000 lb GVWR Cummins Diesel 370 hp, 1,250 ft/lb torque Allison 6 spd Automatic Trans. 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims 44,000 LB Rears on Neway air ride Suspension, with 11R22.5 tires on alum outer rims Double frame chassis 54” spread at tandems Truck Features Include: Engine Brake, Air Cond., AM/FM stereo, cruise, tilt/tele steer column, power windows, power/htd mirrors, chrome bumper and grill, heated mirrors, eng block heater, painted ext visor, rear wheel lock ups, 80 gal alum fuel tank, etc… Options Included : (5) pcs – 2” PVC stab pads w/holders (2) pc Alum storage boxes installed Custom re-enforced manual extension for grapple New Mecanil SG-280 Graple saw with spare parts 2 to 3 day on site boom feature/function familiarization by a BIK tech Optional Version – TC-104 – 104’ Vert Reach Version Mehr anzeigen

BIK Boom Trucks - Milford, MA

177 Central St. 01757 Milford Massachusetts USA
