Grove RT880E

Preis ohne MwSt.

Compnay LOGO
Images14

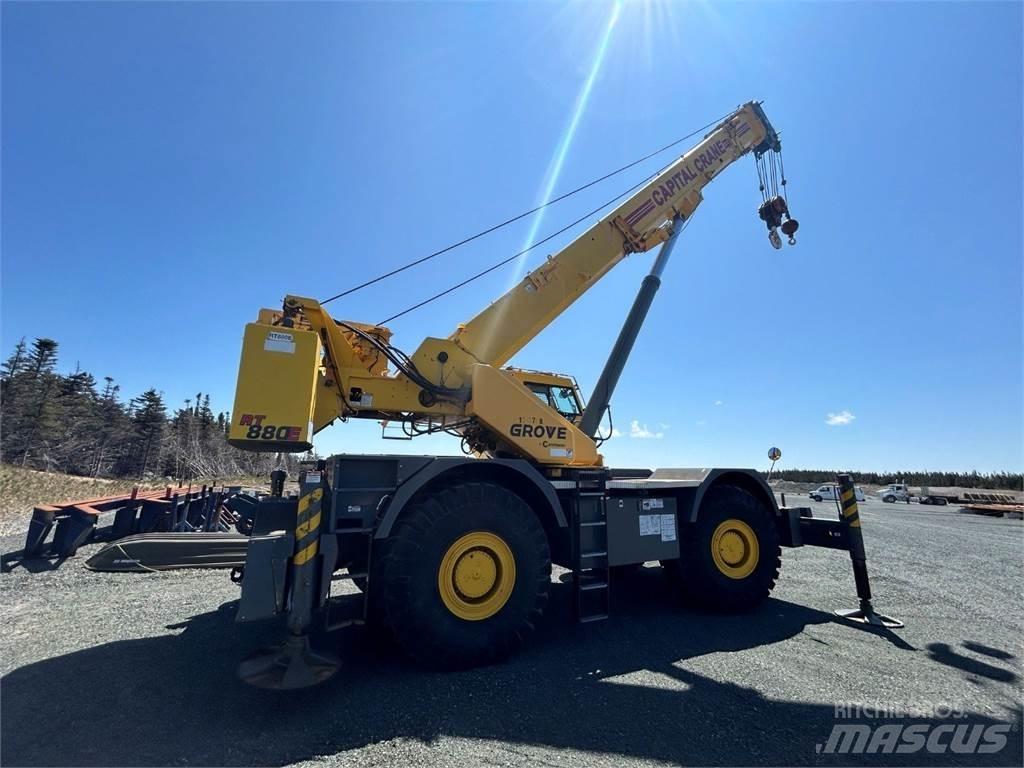

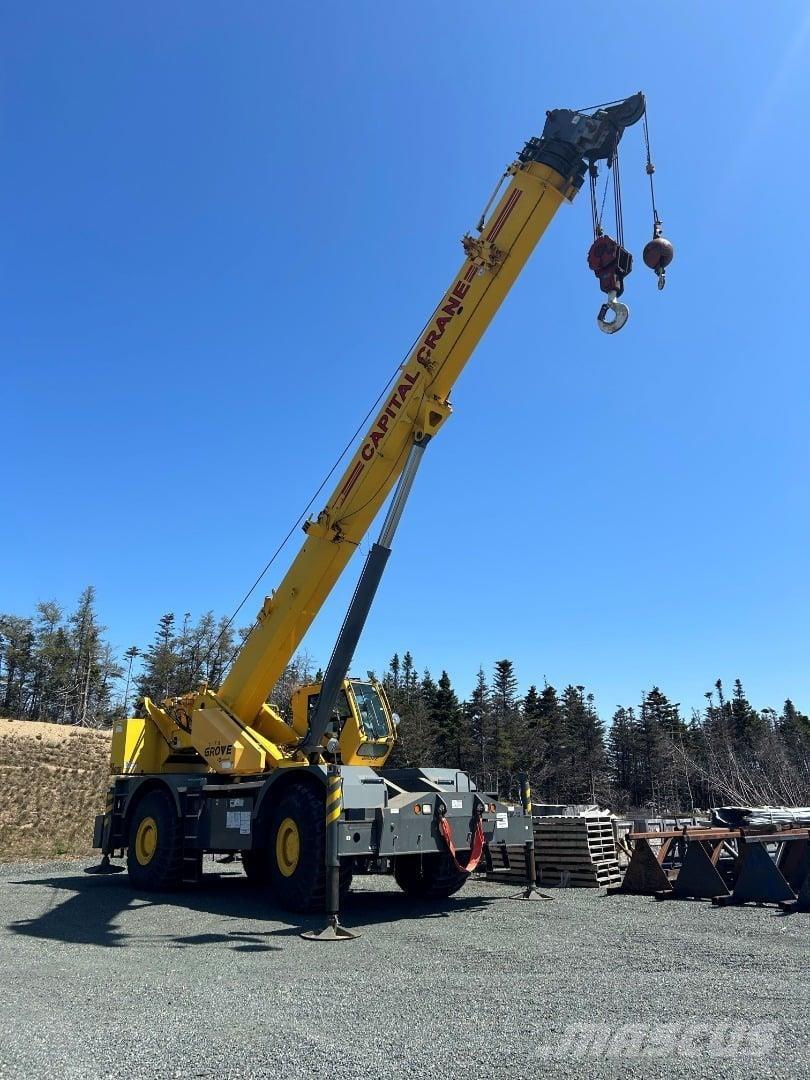

Grove RT880E Autokrane
Grove RT880E Autokrane
Grove RT880E Autokrane
FavoriteFavoriten
shareTeilen
Save searchSuche speichern
Drucken

INFO

Produktkategorie
Autokrane
Marke / Model
Grove RT880E
Herstellungsjahr
2012

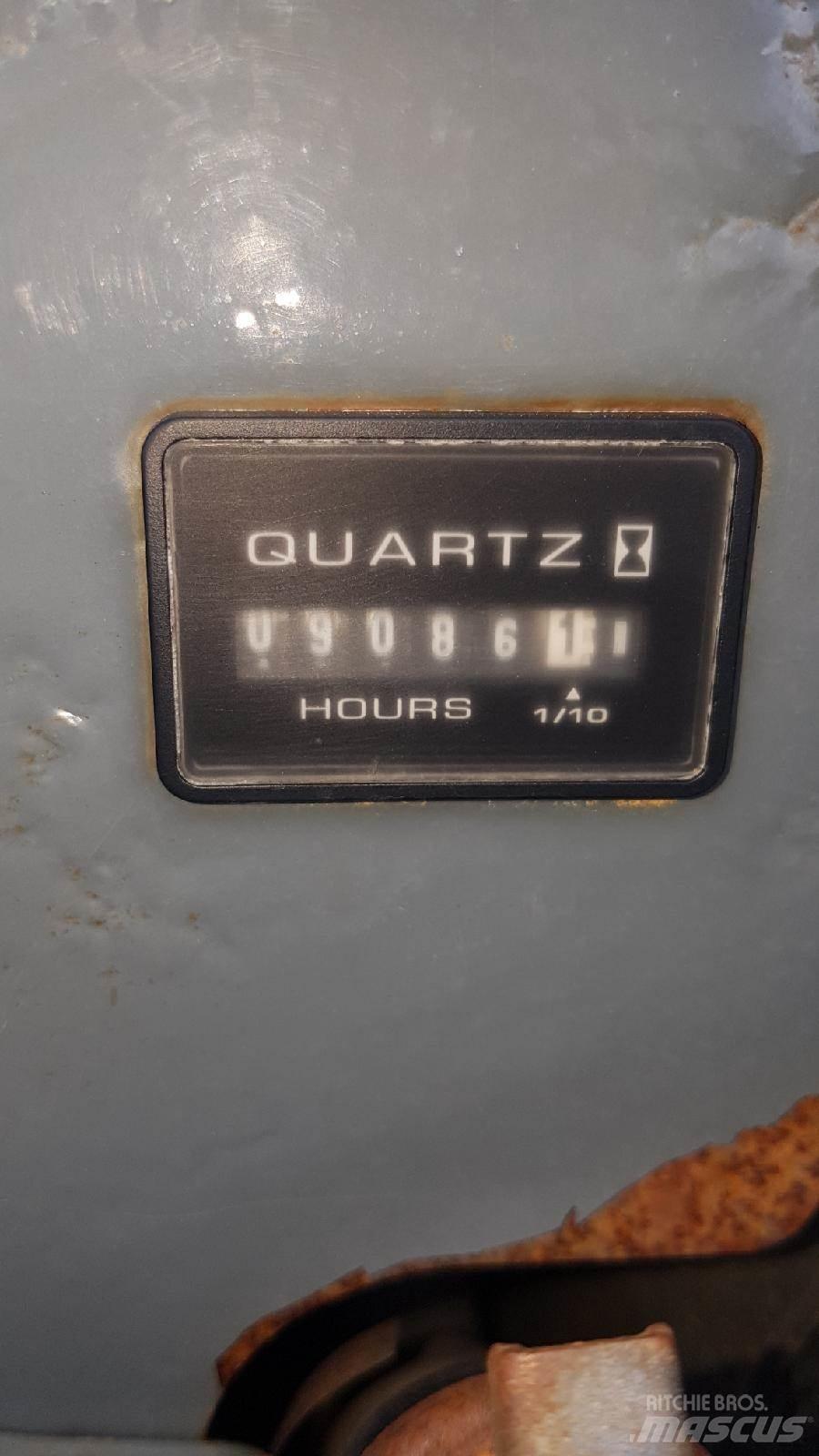

Betriebsstunden
9 401 Std.
Maschinen Standort
Mount Pearl, Newfoundland and Labrador
Land
Kanada
Allgemeine Bewertung
1
2
3
4
5
Mascus ID
40E2E66F

PREISANGABE

Währung auswählen

DETAILS

Lagernummer
C80-12
Serien Nr.
233797
Max. Traglast
80 000 kg
Zusatzgeräte
https://freecranespecs.com/Grove/RT880E
weitere Informationen
FOB Halifax, Nova Scotia BOOM: 41-128 ft. (12.6-39.0m) 4-section, sequenced synchronized full power MEGAFORM style boom with integral holding valves on the telescope cylinders. Four (4) quick reeve nylatron sheaves in the main boom nose. Auxiliary single sheave boom nose. BOOM ELEVATION: One double-acting hydraulic cylinder (-3° to +78°) with integral holding valve. BOOM EXTENSION: Includes 33-56 ft (10.1-17.lm) Manual offsettable bi-fold swingaway. LOAD MOMENT AND ANTI-TWO BLOCK SYSTEM ("Graphic LMI"): Audio­visual (light/buzzer) warning system and Grove control lever lockout system with electronic display of boom angle and length, relative load moment indication, rated load, load, radius and boom tip height. The standard Work Area Definition System allows the operator to pre-select and define safe working areas. If the crane approaches the pre-set limits, audio-visual warnings aid the operator in avoiding job-site obstructions. SWING: 360° continuous rotation planetary "Glide Swing" with foot actuated multi-disc brake, hydraulic swing parking brake, and plunger-type 2 position house lock and pinion guard. COUNTERWEIGHT: One piece 18,000 lb (8 165 kg), hydraulically installed and removed. HYDRAULIC SYSTEM:(]) piston pump and (1) gear pump, steel hydraulic tank with external sight level indicator, filter condition gauge, pressure check ports and hydraulic oil cooler. HOOK BLOCK: 80 ton (75 mt); 5 sheave, "quick reeve" type with swivel hook and safety latch. Wt. 1,318 lb. (598 kg)Mehr anzeigen

Capital Cranes

20 Sagona Ave A1N 4R2 Mount Pearl Newfoundland and Labrador Kanada
