Shantui SD13Plus

Preis ohne MwSt.

Preis auf Anfrage

Compnay LOGO
Images2

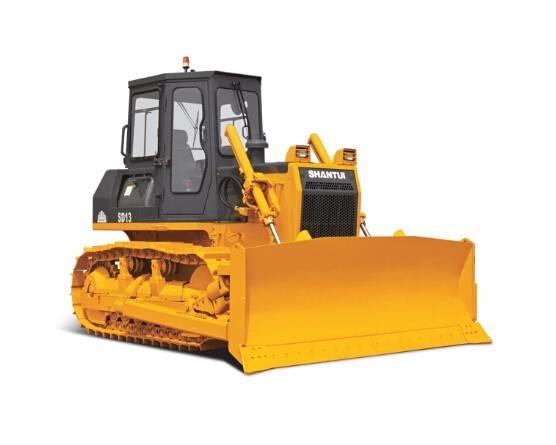

Shantui SD13Plus Bulldozer

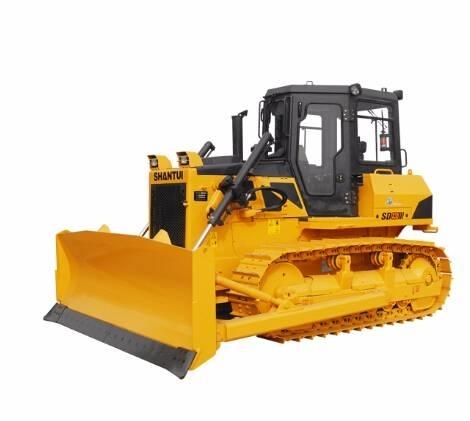

Shantui SD13Plus Bulldozer
FavoriteFavoriten
shareTeilen
Save searchSuche speichern
Drucken

INFO

Produktkategorie
Bulldozer
Marke / Model
Shantui SD13Plus
Herstellungsjahr
2018
Zusatzoptionen
Neu / nicht gebraucht
Maschinen Standort
Jining, Shandong, China
Land
China
Allgemeine Bewertung
1
2
3
4
5
Mascus ID
51861799

DETAILS

Lagernummer
SD13Plus
Letzte Prüfung am
0
Inspektionsvertrag
Ja
Arbeitsbreite
320 cm
Serien Nr.
SD13Plus
Dienstgewicht
13 700 kg
Schaufeltyp
Gerade Schaufel
Laufwerk
Raupenfahrzeug
Emissionsklasse
Emissionsklasse 2 / Tier II
Kabinentyp
Geschlossene Kabine
Motor
Shangchai SC8D143G2B1
Motorleistung
94,2 kW (128 PS)
Spurbreite
460 mm
Getriebe
Shantui
Transportabmessungen (L x B x H)
4500 x 3200 x 2500 mm
Originalfarbe
yellow
Reifenmarke
Shantui
Informationen zum Zustand/Garantie
ISO9001
Zustand der Bereifung vorne
100
Produktionsland
China
Ausgerüstet für
propertynames.pp_equippedfor_2100012
Lieferbedingungen
FOB, CFR, CIF, EXW
Zertifikate
EPA, CE, ANSI
Zubehör
Seilwinde
Klimaanlage
Zusätzliche Hydraulik
Multi Heckaufreisser
Mehr anzeigen
weitere Informationen
Technical Features ● Shangchai SC8D143G2B1 turbocharged diesel engine features strong power and high efficiency and energy conservancy. ● The high reliability power shift transmission and the two-stage final drive with spur gear reducing structure features reliable and stable power transmission, high durability, and high operating efficiency. ● The high-efficiency radiator can help the normal running of machine under high temperature environment and ease the daily maintenances. ● The integrally injection molded instrument panel adopts micro-computer control and reasonably arranged instruments, featuring more distinct displays. ● The optimized working lamp arrangement improves the lighting performance of vehicle. ● The reversing alarm and the working warning lamp are equipped to ensure higher construction safety. ● The instrument box and the gantry frame are isolated to relieve the transmission of vibration. ● The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame. ● The external working valves ease the daily maintenances and realize better maintainability. ● The PPC pilot controls achieve better labor-saving and convenient operations. ● The working device system pressure is increased to 21MPa, featuring high efficiency and energy-saving. ● The rigid traveling system transmits the working load and impact load onto the main frame to guarantee the stability of machine under complicated working conditions. ● The new hexahedron cab features super-large interior space and broader visual field. ● The mounting surface and the sealing surface are separated to achieve better sealing performance. ● The floor fender adopts the labyrinth sealing structure, with the internal noise as low as 87dB. Performance Parameters Length × width × height (mm) (excluding ripper)4492×3185×2490Operating weight(t) (excluding ripper)13.7 Engine modelSC8D143G2B1Net power/rated speed (kW/rpm)95.5/1900 Ground pressure(Mpa)0.063Blade typeStraight tilting blade Angle blade Blade capacity (m3)3.158 for straight tilting blade and 2.33 for angle blade Applicable Working Conditions Earthworks.Mehr anzeigen
