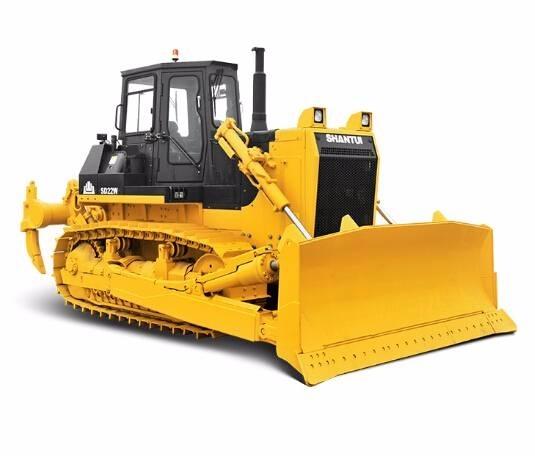

Shantui SD22W

Technical Features ● It’s equipped with high strength wear-resistant rock blade and push rod and is applicable for heavy-load conditions (such as coarse sands, stones, and decomposed rocks). Performance Parameters Length × width × height (mm) (excluding ripper) 5495×3725×3745 Operating weight(t)(excluding ripper) 23.6 Engine model WD12G240E206/NT855-C280S10 Net power/rated speed (kW/rpm) 162/1800 Ground pressure(Mpa) 0.077 Blade type Straight tilting blade Angle blade U blade Semi-U blade Blade capacity(m3) 6.4 for straight tilting blade 4.7 for angle blade 7.5 for U blade 7.0 for Semi-U blade Applicable Working Conditions Mining operations for coarse sands, stones, and decomposed rocks.
