SmartTEH ST-20/750

Preis ohne MwSt.

Preis auf Anfrage

Compnay LOGO
Images9
SmartTEH ST-20/750 Förderbandanlagen
SmartTEH ST-20/750 Förderbandanlagen
SmartTEH ST-20/750 Förderbandanlagen
FavoriteFavoriten
shareTeilen
Save searchSuche speichern
Drucken

INFO

Produktkategorie
Förderbandanlagen
Marke / Model
SmartTEH ST-20/750
Herstellungsjahr
2019
Betriebsstunden
220 Std.
Zustand
Demo-Maschine
Land
Lettland
Allgemeine Bewertung
1
2
3
4
5
Mascus ID
055DF23C

DETAILS

Anzahl der Vorbesitzer
1
Inspektionsvertrag
Ja
Dienstgewicht
40 000 kg
Bewegungsart
Transportabel
Verarbeitungsmenge
750 t/Stunde
Motor
diesel type KDI
Motorhersteller
Kohler
Transportabmessungen (L x B x H)
28.5 x 3.9 x 3.85 mm
Produktionsland
Lettland
Lieferbedingungen
EXW
Zusatzgeräte
remote control, remote diagnistics
Zubehör
Konstrollsystem
weitere Informationen

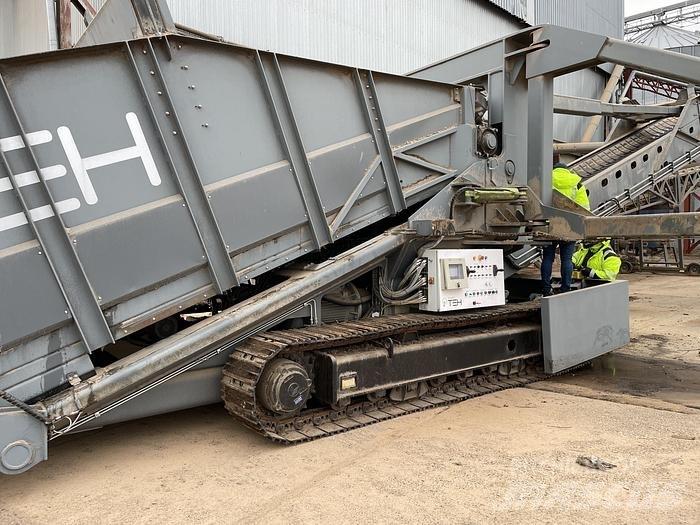

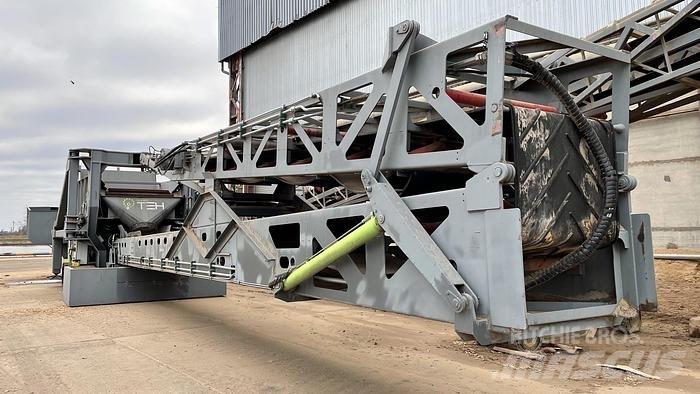

Mobile radial stacker/feeder, or shiploader. Designed for material of bulk density of 750 kg/cbm, equipped with wireless remote control and touchscreen control panel. Diesel engine is used for travelling, and electrical power is necessary for all the other functions. Maximum capacity with boom lifting angle at 2 degrees is 1150 cbm/h; maximum with boom angle of 27 degrees is 720 cbm/h. It is equipped with two outriggers, capable of supporting operation with boom turned to either side. Boom maximum angle of turn is 60 degrees to both sides, or 17 meters from one side to another. Maximum boom height is 12 meters, or 27 degrees. Boom is foldable. Shiploader is equipped with crawlers, maximum travelling speed is 220 m/h. Feed hopper can be lifted up till 6.5 degrees, hopper sides can be tilted upwards to facilitate feeding of material to conveyor 1. Conveyor 1 (receiving from hopper and delivering to boom conveyor) is speed-regulated, depending on amount of material and to prevent from overfeeding of boom conveyor. All main bearings have temperature measuring and monitoring system. There is a remote connection available via mobile cellular network, which allows the manufacturer to assist with errors and troubleshooting. Apart from possibility of receiving material directly from trucks, the shiploader can be used with feeding system of any kind, like extra conveyors or wheel loaders, etc. Video: https://cloud.aquila-harborcranes.com/s/bJFgyCCzXJMN2mK Photo: https://cloud.aquila-harborcranes.com/s/itz6B6ecnnHzZAFMehr anzeigen

Aquila Harbor Cranes SIA

Getlinu 7A LV-2121 Rumbula Stopiņu novads Lettland
