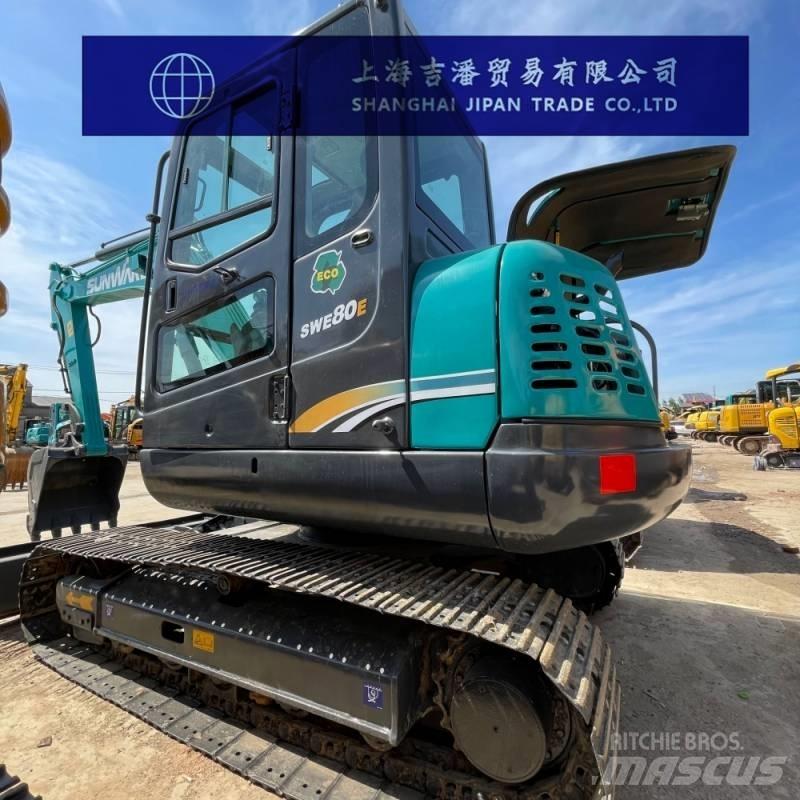

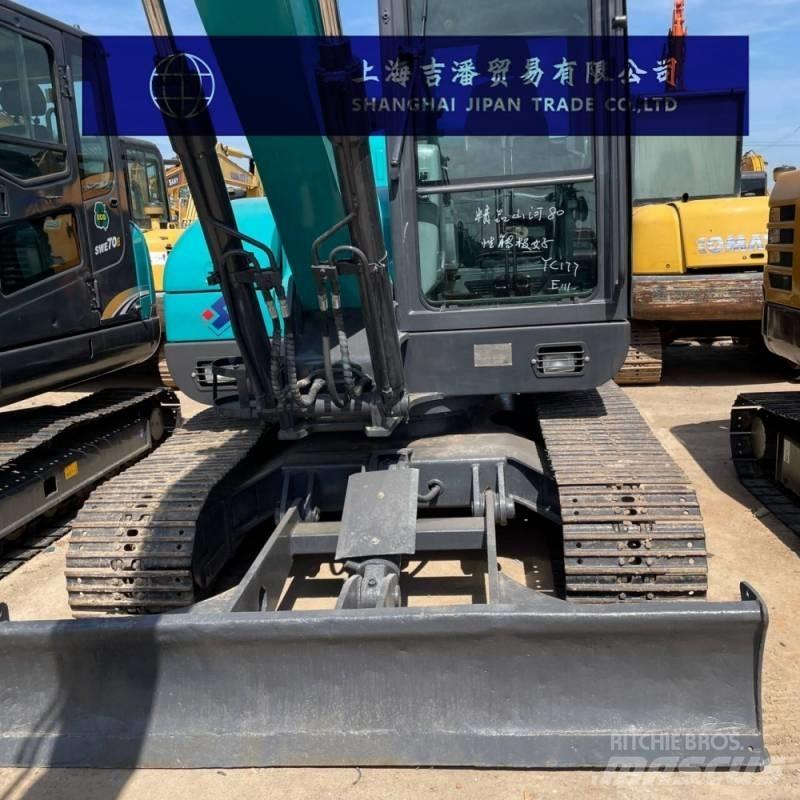

Sunward SWE 80 E

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

General parameters Overall weight: approximately 7.7 tons Standard bucket capacity: 0.3 cubic meters Overall dimensions (length × width × height) : 6025×2000×2660mm Track width: 450mm Track grounding length: 2250mm Track: 1600mm Engine parameters Model: Yanmar 4TNV94L Rated power: 42.4kW (57.6 horsepower) Rated speed: 2200rpm Maximum torque: 206N · m (152 pounds · feet) Parameters of the hydraulic system Main pump type: Variable plunger pump The maximum flow rate of the main pump is 2×85L/min Pilot pump flow rate: 10L/min System working pressure: 20.6MPa (210kgf/cm²) Rotary hydraulic motor type: fixed displacement motor Rotational speed: 10rpm Type of walking hydraulic motor: Variable motor Walking speed: 2.5/4.0km/h Working range parameters Maximum excavation radius: 6100mm Maximum excavation depth: 3900mm Maximum excavation height: 6000mm Maximum unloading height: 4150mm Minimum turning radius: 2300mm Other parameters Fuel tank capacity: 120L Hydraulic oil tank capacity: 100L Coolant capacity: 10L Air conditioning system: Optional
