CAT CAT305.5E2

Preis ohne MwSt.

Images10

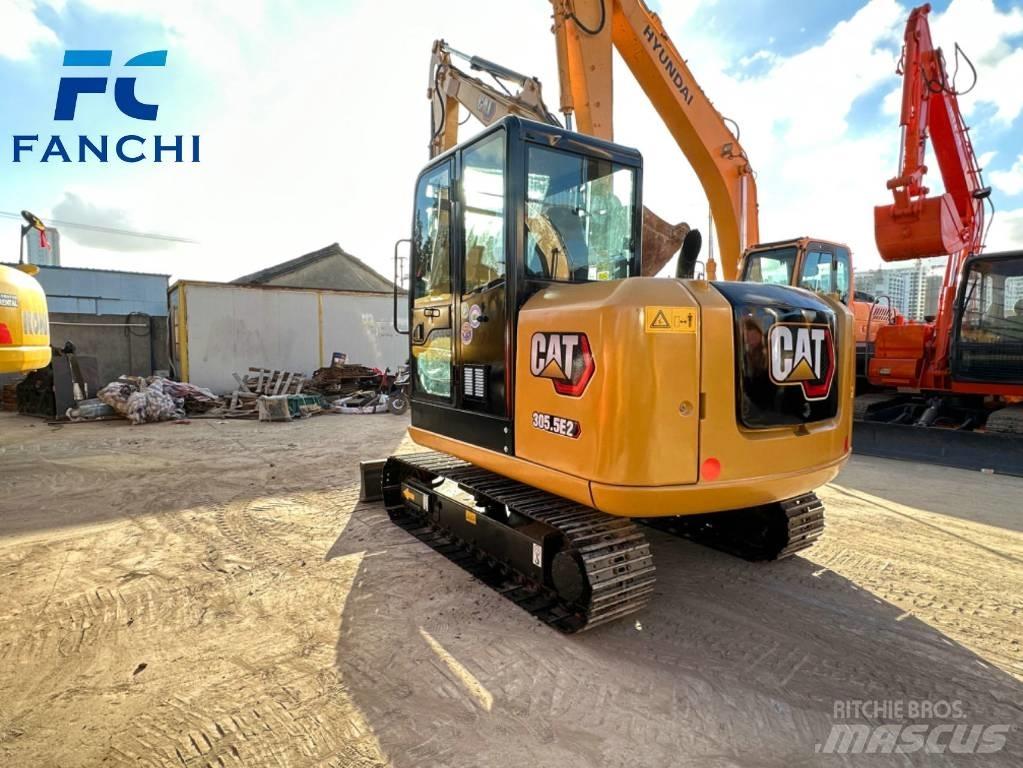

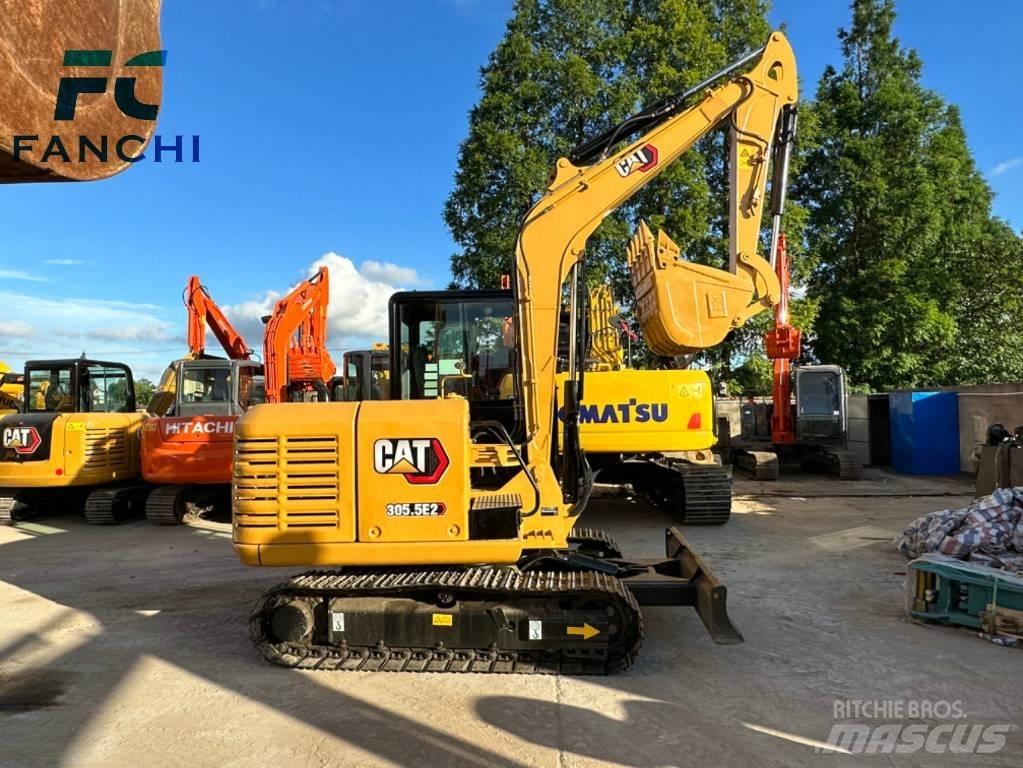

CAT CAT305.5E2 Minibagger < 7t
CAT CAT305.5E2 Minibagger < 7t
CAT CAT305.5E2 Minibagger < 7t
FavoriteFavoriten
shareTeilen
Save searchSuche speichern
Drucken

INFO

Produktkategorie
Minibagger < 7t
Marke / Model
CAT CAT305.5E2
Herstellungsjahr
2024
Betriebsstunden
450 Std.
Zustand
Aufbereitet
Land
China
Allgemeine Bewertung
1
2
3
4
5
Mascus ID
77BC2619

PREISANGABE

Währung auswählen

DETAILS

Typ
Diesel
Inspektionsvertrag
Ja
Anzahl der Vorbesitzer
1

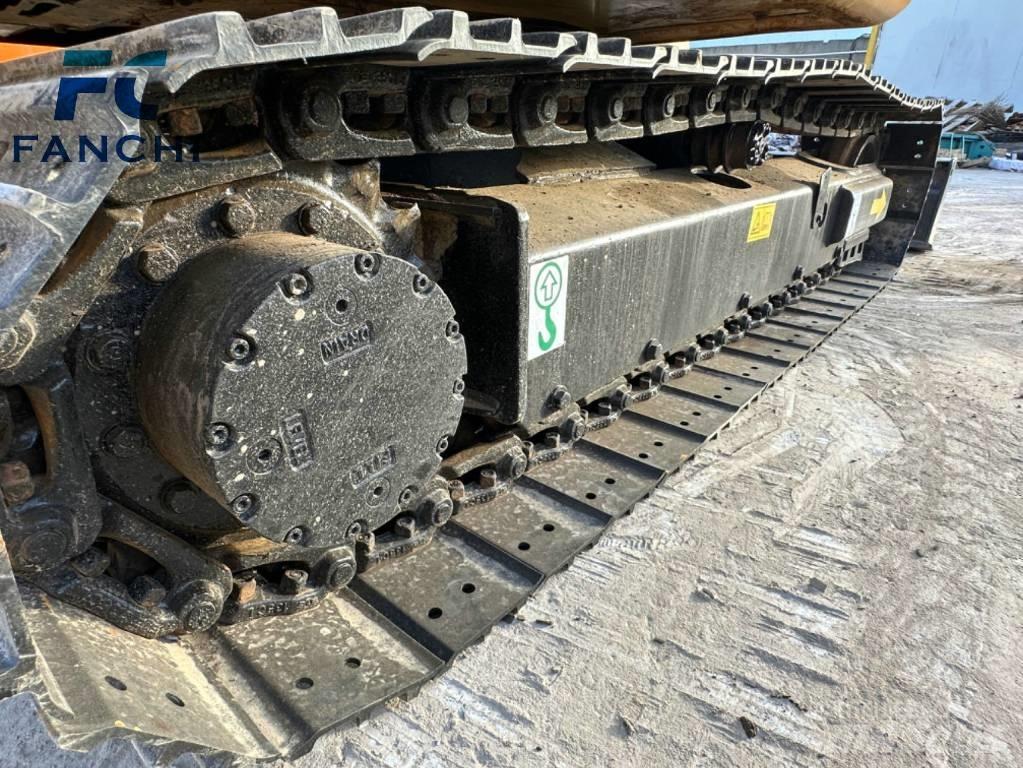

Zustand Laufwerk
good
Dienstgewicht
5 500 kg
Emissionsklasse
Emissionsklasse 5 / Tier V
Spurbreite
400 mm
Schaufelvolumen
0,22 m3
Transportabmessungen (L x B x H)
576519502.54 m
Originalfarbe
YELLOW
Hochlöffel-/Schaufelstiellänge
960 mm
Motor
Cat C2.4 DI
Motorleistung
34,1 kW (46,4 PS)
Motorhersteller
JAPAN
Informationen zum Zustand/Garantie
good
Produktionsland
Japan
Lieferbedingungen
FOB, CIF, EXW
Zertifikate
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME (American Society of Mechanical Engineers)
Zusatzgeräte
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Zubehör
Kabelkasten
Klimaanlage
Zusätzliche Hydraulik
AdBlue
Mehr anzeigen
weitere Informationen
The performance parameters of the Caterpillar CAT305.5E2 excavator are as follows: 1. **Overall Dimensions of the Machine** - Total transportation length: 5765mm, total transportation width: 1950mm, total transportation height: 2540mm, minimum ground clearance: 628mm, rear swing radius: 1580mm, total track length: 2440mm, track gauge: 1550mm, track shoe width: 400mm, center distance between idler wheels: 1920mm. 2. **Operating Weight** - The operating weight of the whole machine is 5400kg. 3. **Bucket Capacity** - The bucket capacity is 0.22 cubic meters. 4. **Power System** - Engine model: Cat C2.4 DI, rated power: 34.1kW, cylinder bore: 87mm, stroke: 102.4mm, displacement: 2.4L. 5. **Performance Parameters** - Swing speed: 10.5rpm. - Gradability: 50%. - Bucket digging force: 35.0kN. - Stick digging force: 27.2kN. - Maximum drawbar pull: 40.2kN. - Travel speed: 4.3/2.8km/h. - Swing torque: 13.9N·m. 6. **Hydraulic System** - Maximum main pump flow: 140L/min. The type of the main pump is a load sensing hydraulic system equipped with a variable displacement piston pump, and the working hydraulic circuit pressure is 25MPa. 7. **Oil Capacity** - Fuel tank: 78L, hydraulic oil tank: 58L, engine oil change capacity: 9.5L, coolant: 9.8L. 8. **Working Range** - Maximum digging radius: 5955mm. - Maximum digging depth: 3720mm. - Maximum digging height: 5460mm. - Maximum unloading height: 3835mm. - Maximum vertical digging depth: 2210mm. 9. **Bulldozer Blade Parameters** - Lifting or pushing depth: 365mm/480mm, width×height of the bulldozer blade: 1950mm×360mm.Mehr anzeigen

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 China
