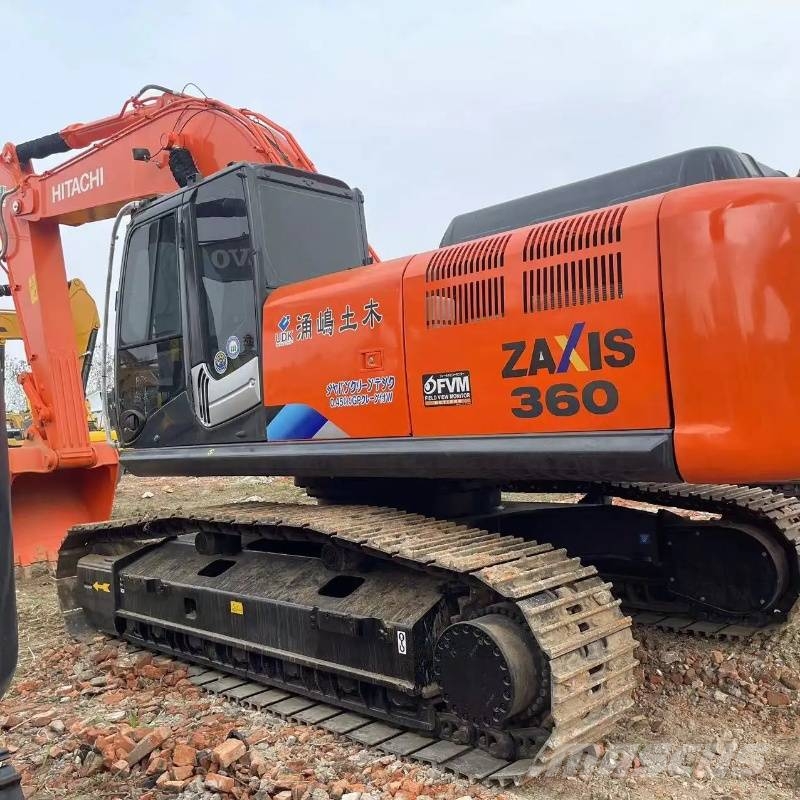

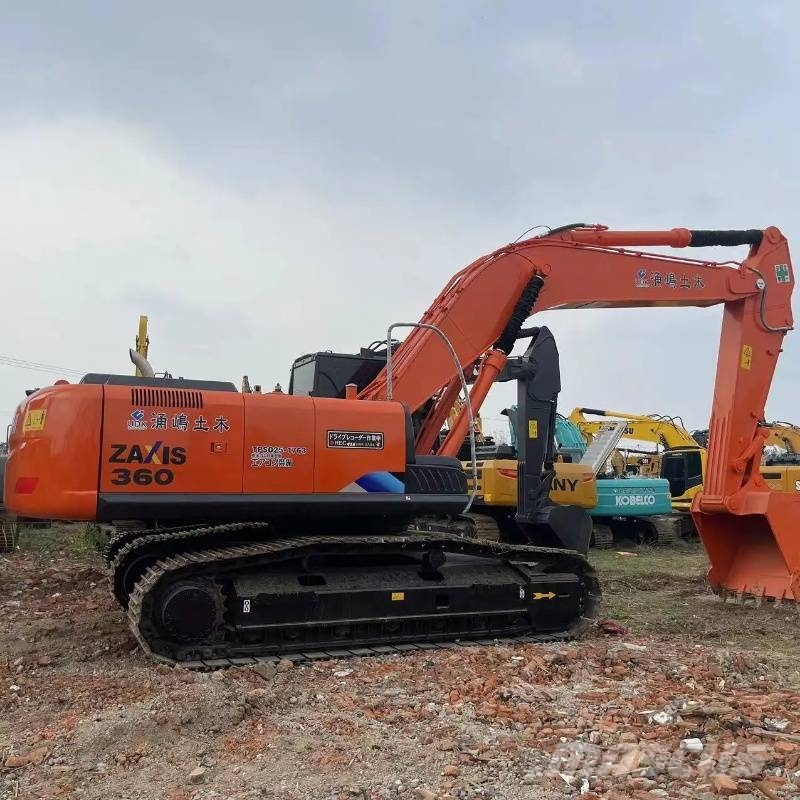

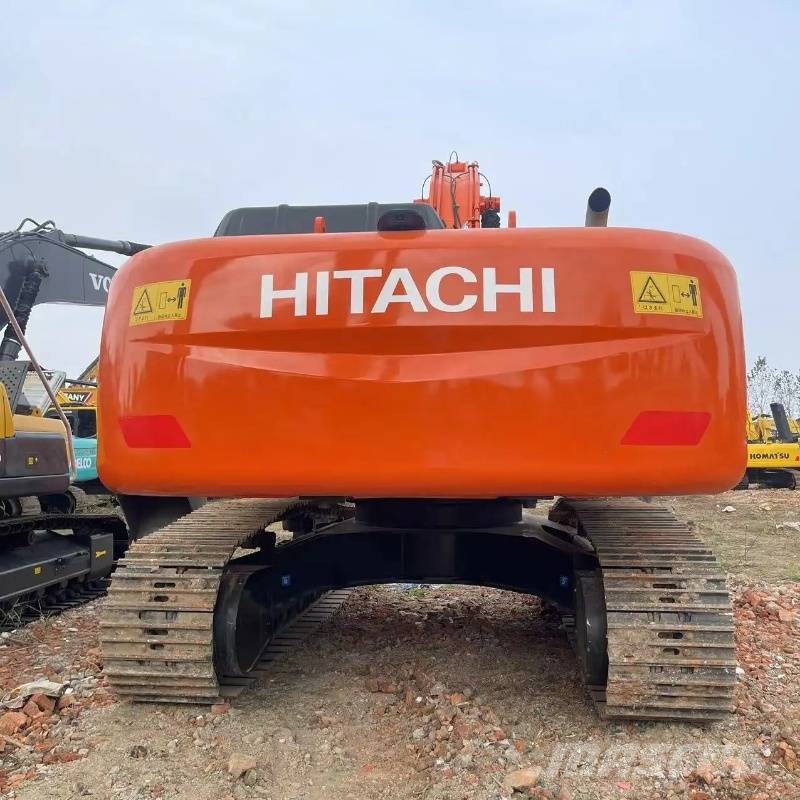

Hitachi ZX 360

# HITACHI ZX360 Crawler Excavator Specifications Model: HITACHI ZX360LC Operating Weight: 34200 kg Bucket Capacity: 1.4 ~ 1.8 m³ Transport Dimensions (L×W×H): 11100 × 3190 × 3280 mm Track Shoe Width: 600 mm Travel Speed (High/Low): 5.0 / 3.2 km/h Swing Speed: 10.7 rpm Bucket Digging Force: 234 kN Arm Digging Force: 182 kN Max Digging Depth: 7380 mm Max Digging Radius (Ground Level): 10570 mm Max Dumping Height: 7250 mm Ground Contact Pressure: 0.71 bar ## Engine Engine Model: Isuzu GH-6HK1XKSA-01 Rated Net Power: 190 kW (258 HP) / 1900 rpm Cylinder: 6-cylinder, water-cooled, turbocharged & intercooled common rail diesel Displacement: 7.79 L ## Hydraulic System Main Pump: 2 variable displacement piston pumps + 1 gear pump Max Pump Flow: 2×212 L/min Relief Pressure: 34.3 MPa Fuel Tank: 630 L Hydraulic Tank: 297 L System Type: HIOS IV hydraulic control system
