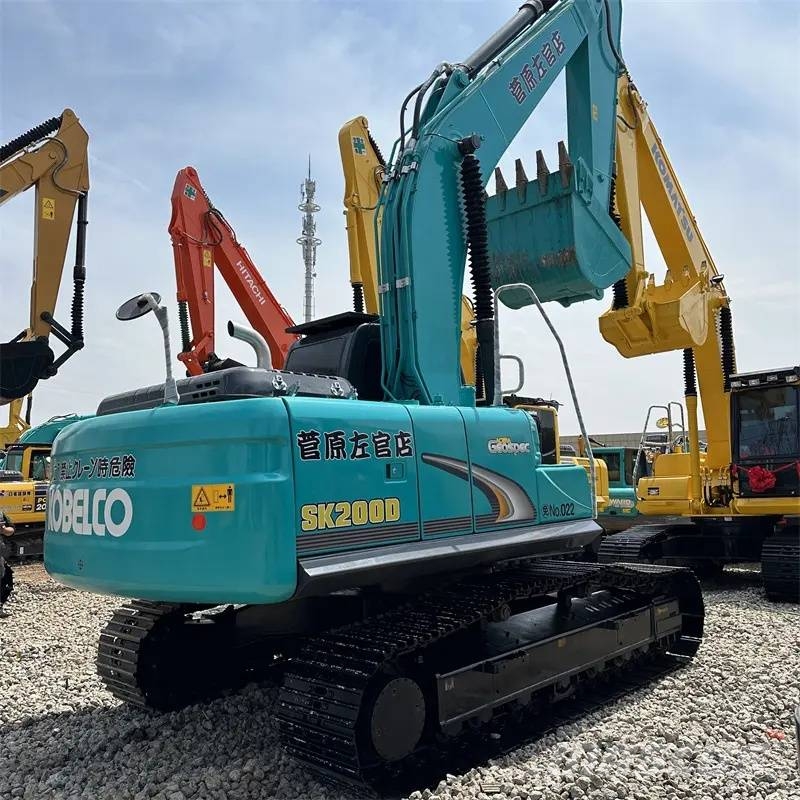

Kobelco SK 200D

# KOBELCO SK200D Crawler Excavator Specifications Model: KOBELCO SK200D Operating Weight: 20600 kg Bucket Capacity: 0.8 m³ Transport Dimensions (L×W×H): 9450 × 2800 × 2980 mm Track Shoe Width: 600 mm Travel Speed (High/Low): 6.0 / 3.6 km/h Swing Speed: 13.3 rpm Bucket Digging Force: 143 kN Arm Digging Force: 102 kN Max Digging Depth: 6700 mm Max Digging Radius: 9900 mm Max Dumping Height: 6910 mm Max Digging Height: 9720 mm Ground Clearance: 460 mm Ground Pressure: 46 kPa ## Engine Engine Model: HINO J05E-TA Rated Net Power: 114 kW / 2000 rpm Gross Power: 118 kW / 2000 rpm Displacement: 5123 cc Cylinders: 4 in-line, water-cooled diesel, turbocharged with intercooler Emission Standard: EU Stage IIIA Fuel Tank Capacity: 320 L ## Hydraulic System Hydraulic Type: Load sensing hydraulic system Main Pump Max Flow: 461 L/min Max Working Pressure: 34.3 MPa
