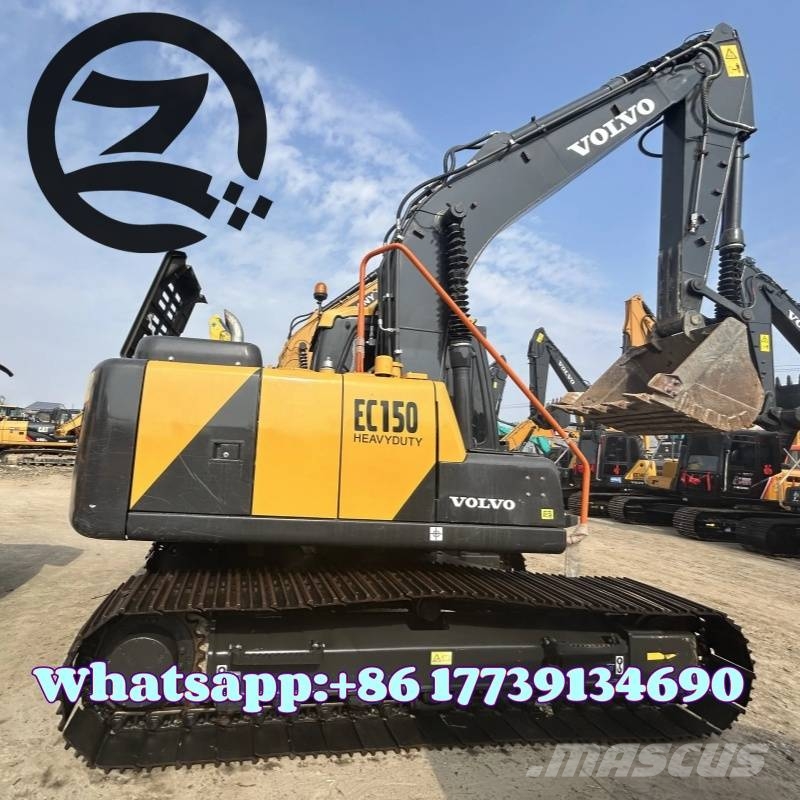

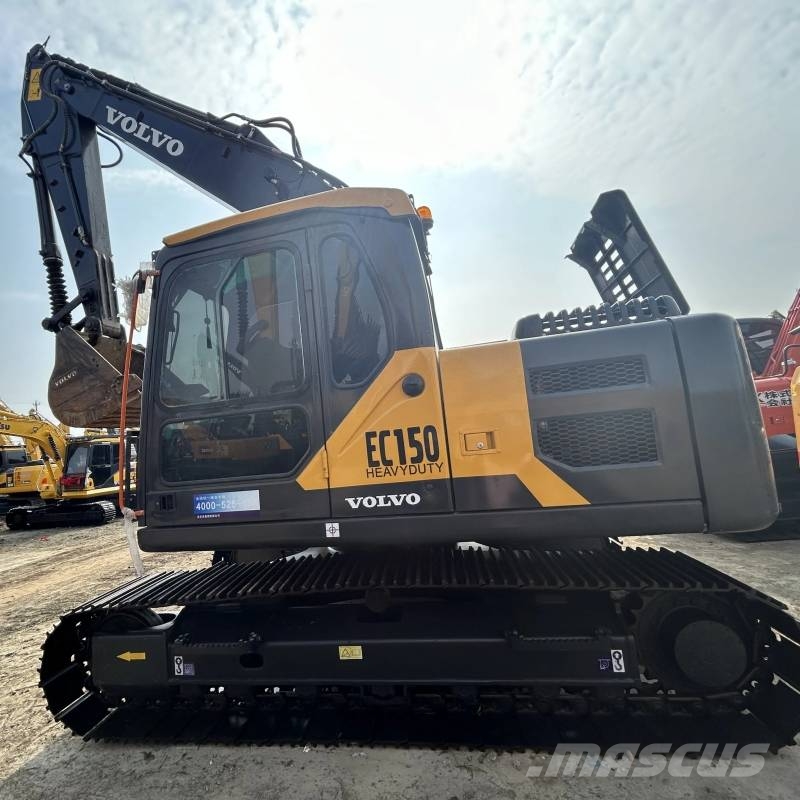

Volvo EC 150

# VOLVO EC150 Crawler Excavator Specifications Model: VOLVO EC150 Operating Weight: 16200 kg Bucket Capacity: 0.78 m³ Transport Dimensions (L×W×H): 8560 × 2500 × 2900 mm Track Shoe Width: 500 mm Travel Speed (High/Low): 5.4 / 3.0 km/h Swing Speed: 12 rpm Bucket Digging Force: 102 kN Arm Digging Force: 82 kN Max Digging Depth: 5850 mm Max Digging Radius: 9000 mm Max Dumping Height: 6230 mm Ground Clearance: 420 mm ## Engine Engine Model: Cummins B3.9-C Rated Net Power: 79.4 kW / 2200 rpm Displacement: 3.9 L Cylinders: 4 Fuel Tank Capacity: 220 L ## Hydraulic System Hydraulic Type: Variable displacement double piston pumps Main Pump Max Flow: 220 L/min Max Working Pressure: 31 MPa
