Everest 7.833

Preis ohne MwSt.

Compnay LOGO
Images2

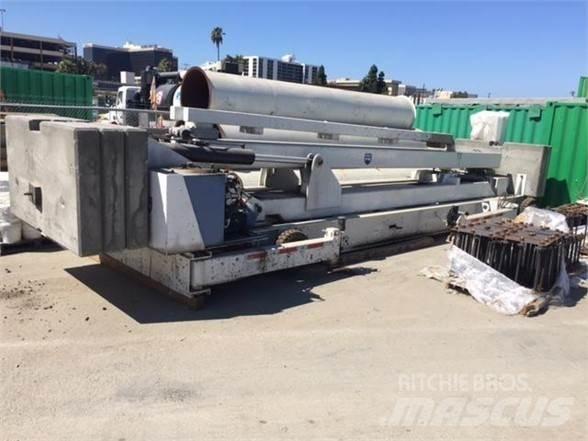

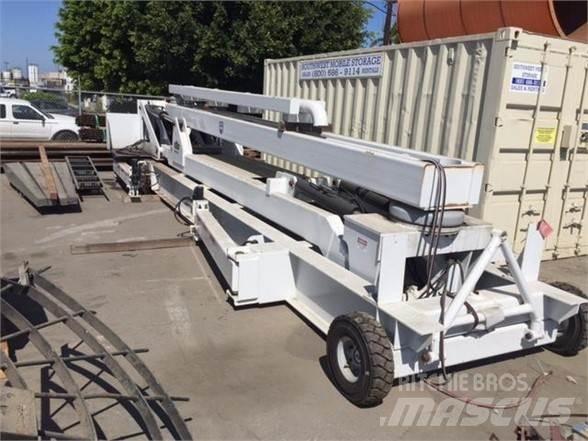

Everest 7.833 Sonstige Baumaschinen
Everest 7.833 Sonstige Baumaschinen
FavoriteFavoriten
shareTeilen
Save searchSuche speichern
Drucken

INFO

Produktkategorie
Sonstige Baumaschinen
Marke / Model
Everest 7.833
Herstellungsjahr
2015
Maschinen Standort
Los Angeles, California
Land
USA
Mascus ID
2ADB4891

PREISANGABE

Währung auswählen

DETAILS

Serien Nr.
UNKNOWN
weitere Informationen
Description: custom made concrete distribution units Parameters: Max Reach for Areas 60’/65’ Max Reach Walls at 65 25’ Max Width 7’ 10” Min. Height Operating 5’ 6” Max Height Parked 5’ 6”  of Pipe 5” Approx. Weight operating 13T System: The Distributor Unit is laid out to be used on walls/mezzanine or invert areas, being able to reduce its height to a minimum if requested. The whole Pipe System has been designed for an easy replacement, connected by rapid couplings. The distribution unit is operated by one man, using the remote control box or the pushbuttons on the electric cupboard. Technical Details: The Distribution Unit consists of the following main features/components: -Main Frame with 4 outriggers -Outriggers with hydraulic foot -2x2 Wheels in the rear -1 x Pivotable axle with 2 single wheels and tow-bar -One bearing mounted base with counter-balance weight rotation of 360 (+/- 180) -Main bearing  1000mm (3’ 3 1/3”) with gear -One basic arm with a rotatable end element with bearing for arm 2 -Arm Number 2 with support joint for Arm 3 -Concrete pipe with elbows and couplings, using only reinforced elbows and pipes -Electro Hydraulic plant with a) Motor/gear/brake for main bearings b) Motor/gear/brake for second bearing c) Hydraulic cylinders -2 x 120 x 750/75 -2 x 100 x 750/63 -2 x 180 x 750/36 -4 x 100 x 300 d) Electro valves for 5 main operations e) Safety valves f) Double pump drive system g) Pipes, hoses, fittings (jic) -Remote Control with movement selection and joystick -One electric cupboard with motor protection and manual push buttons on the outside -4 manual valves for the outriggers with retaining valves Total Weight 28,500lbsMehr anzeigen

The Walsh Group

2711 E 112th St 60617 Chicago Illinois USA
