MAXCUT MCV-1100

Preis ohne MwSt.

Compnay LOGO
Images20
MAXCUT MCV-1100 Sonstige Baumaschinen
MAXCUT MCV-1100 Sonstige Baumaschinen
MAXCUT MCV-1100 Sonstige Baumaschinen
FavoriteFavoriten
shareTeilen
Save searchSuche speichern
Drucken

INFO

Produktkategorie
Sonstige Baumaschinen
Marke / Model
MAXCUT MCV-1100
Herstellungsjahr
2017
Zustand
Gebraucht
Maschinen Standort
Langley, British Columbia
Land
Kanada
Mascus ID
B294CCD7

PREISANGABE

Währung auswählen

DETAILS

Lagernummer
120258
weitere Informationen

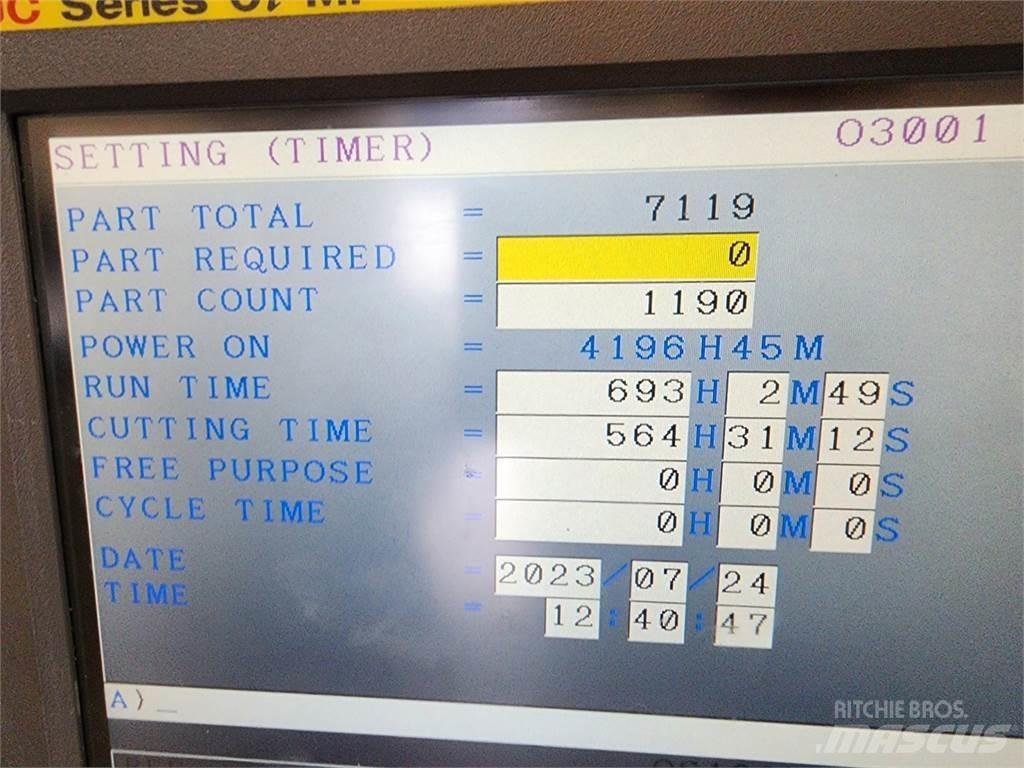

CNC Machining Center MCV-1100 Title: CNC Machining Center MCV-1100 SKU: 120258 Model: MCV-1100 Year: 2017 Condition: Used S/N: 1723322000 GeneralSpindle Taper:ISO 40 Table Size:1300 x 600 mm Speed:10000 rpm CNC:Yes Run Time:693hrs ElectricalVoltage:220/440volts Phase:3-phase Amps:90/45amps Dimensions: 80.00 (H) x 60.00 (W) x 85.00 (L) inches [VIDEO LINK](... Fanuc Series 0i-MF Control - Built-in engraving functions: X/Y engraving and X/A engraving if 4th Axis installed - Conversational to G-code conversion feature allows programming without G-code - Quick programming helical taper interpolation or helical taper threading - Inside/outside taper threading/boring cycle - Swing arm type tool changer - Wash down system with coolant gun - Heavy-duty box way design - Through spindle coolant - Chip conveyor Power: 15 kVA Cutting Time: 564 hrs Table Height: 840 mm (33") Table Loading Capacity: 800 kgs (1760 lbs) X-Travel: 1120 mm (44") Y-Travel: 635 mm (25") Z-Travel: 602 mm (23.7") Spindle Center to Column: 675 mm (26.58") Nose to Table: 115-717 mm (4.5" - 28.25") Motor: 15/20 hp X Axis Motor Torque: 14.84 Nm Y Axis Motor Torque: 14.84 Nm Z Axis Motor Torque: 27.34 Nm Coolant Pump Motor: 3/4 hp Arm Style ATC Number of Tools: 24 Tool Taper: CAT 40 Tool Select by Shortest Path: Bi-direcitonal Max. Tool Weight: 8.9 kgs (17.6 lbs) Max. Tool Diameter: 130 mm (5.12") Max. Tool Diameter (Adjacent Pocket): 70 mm (2.76") Max. Tool Length: 300 mm (11.81") Performance Rapid Traverse X/Y/Z: 24 m/min (1000 ipm) Feed Rate X/Y/Z: 15 m/min (600 ipm) Positioning Accuracy: +/- 0.005 mm (+/- 0.0002 in.) Repeatability: +/- 0.002 mm (+/- 0.00008 in.) Dimensions & Weights Length x Width x Height: 3.3 x 2.5 x 2.8 m (132 x 100 x 112 in.) Machine Weight: 5000 kg Chip Conveyor Weight: 245 kg Floor Space: 5.27 x 3.25 m (207 x 128 in.)Mehr anzeigen

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Kanada
