MORRISON VMC-4220B

Preis ohne MwSt.

Compnay LOGO
Images4
MORRISON VMC-4220B Sonstige Baumaschinen
MORRISON VMC-4220B Sonstige Baumaschinen
MORRISON VMC-4220B Sonstige Baumaschinen
FavoriteFavoriten
shareTeilen
Save searchSuche speichern
Drucken

INFO

Produktkategorie
Sonstige Baumaschinen
Marke / Model
MORRISON VMC-4220B
Herstellungsjahr
2012
Zustand
Gebraucht
Maschinen Standort
Langley, British Columbia
Land
Kanada
Mascus ID
840B4C8B

PREISANGABE

Währung auswählen

DETAILS

Lagernummer
120259
weitere Informationen

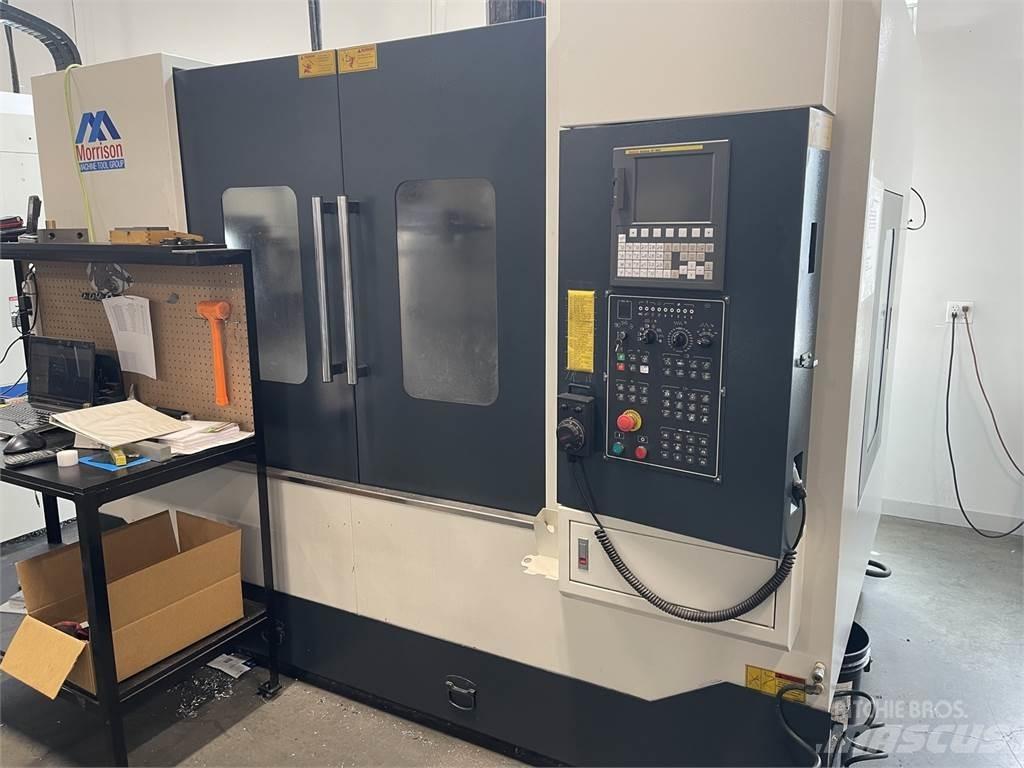

Vertical Machining Center VMC-4220B Title: Vertical Machining Center VMC-4220B SKU: 120259 Model: VMC-4220B Year: 2012 Condition: Used S/N: 1200054 GeneralSpindle Taper:#40 Table Size:47" x 20" Speed:12000 rpm CNC:Yes ElectricalVoltage:230volts Phase:3-phase Amps:65amps Capacity X Axis Travel: 42" Y Axis Travel: 20" Z Axis Travel: 24" Table Loading Area: 47" x 20" Allowable Table Load: 1760 lb. Table T-Slot Spacing x Width: (5) - 15T x 100 inch Spindle Nose to Table Top: 3.3 - 23.3" Column to Spindle Center: 20.4" Standard Speed: 12,000 rpm Spindle Motor (30 min): 20 hp Spindle Torque (30 min): 142 ft-lb Automatic Tool Changer Number of Tools: 24 Tool Shank: Cat 40 (Big Plus) Max. Tool Diameter: 4" Max. Tool Length: 11.8" Max. Tool Weight: 15.4 lb Motion X and Y Axis Rapid Traverse Rate: 1,181 ipm Z Axis Rapid Traverse Rate: 1,181 ipm Cutting Feed Rate: 12 - 384 ipm Least Common Increment: 0.0001 in. Position Accuracy: +/- 0.0002 in. Repeatability: +/- 0.00008 in. Dimensions & Weights Floor Space: 123" x 98" Machine Weight: 15,400 lbMehr anzeigen

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Kanada
