Produktkategorie
Sonstige Baumaschinen
Marke / Model
SEGERO
Herstellungsjahr
2019
Zustand
Gebraucht
Maschinen Standort
Langley, British Columbia
Land
Kanada
Mascus ID
3D409EE8

PREISANGABE

Währung auswählen

DETAILS

Lagernummer
104366
weitere Informationen

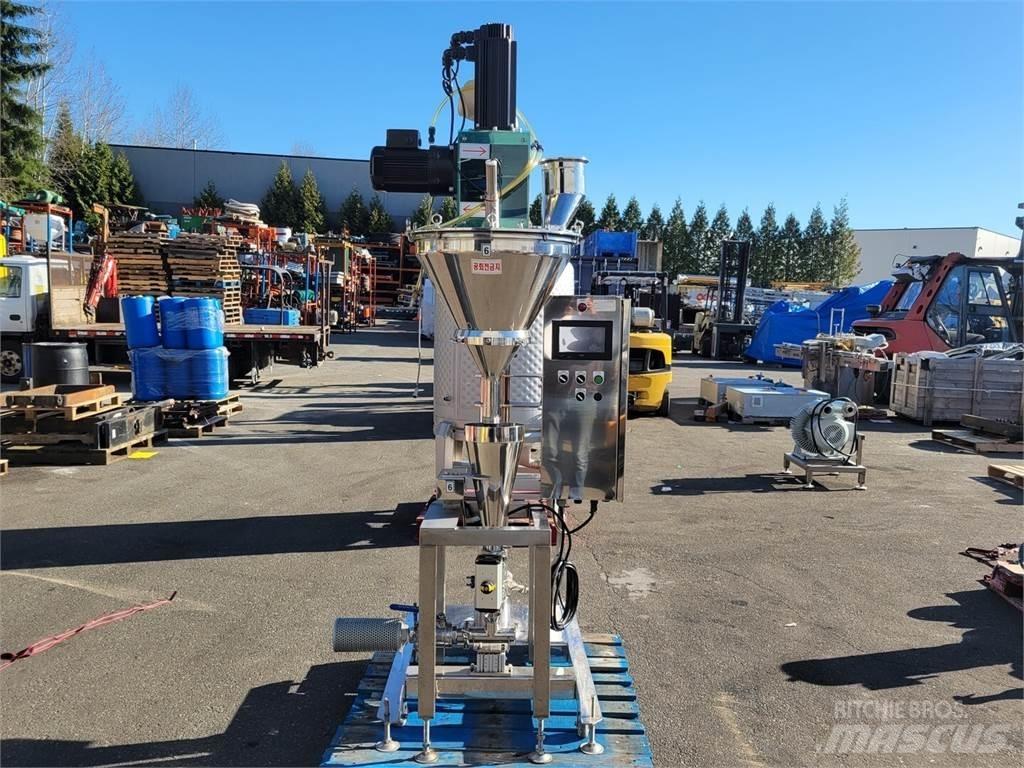

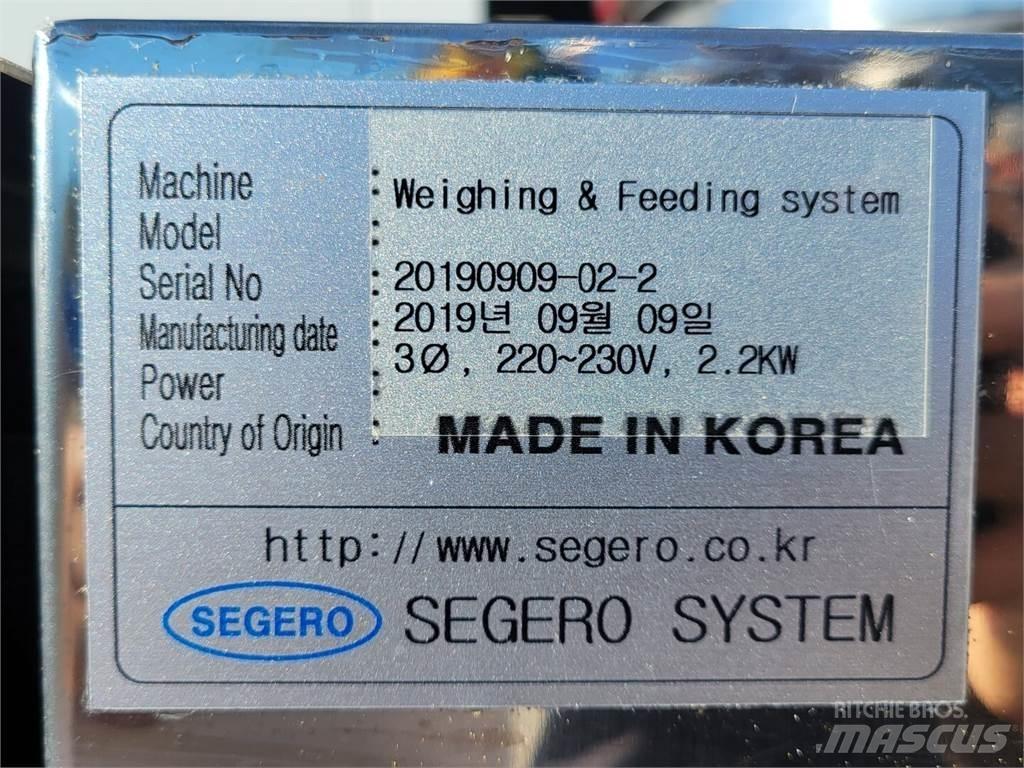

Weighing & Feeding System for Powder, Sliced Almond & Liquid Title: Weighing & Feeding System for Powder, Sliced Almond & Liquid SKU: 104366 Year: 2019 Condition: Used S/N: 20190909-02-2 Made In: SOUTH KOREA Dimensions: 92.00 (H) x 34.00 (W) x 41.50 (L) inches [PDF SPEC SHEET](... 2.2 kW Phase: 3 Voltage: 220-230 V Products: 2 type powders, sliced or crushed almond, heated liquid Speed: 14 cycle/hour Systems Agitating Hopper: - 120 L volume - 1/2 hp - 1/200 reduction Auger Filler: - 400 W motor - 30 L hopper volume - Load cell control type - PLC & touch screen - Weighing range: 1,000 g - 4,000 g Vacuum Loader: - 30 L cyclone hopper volume - Capacity: 300 kg/hr - 3.75 kW, 380/220 V, 3-ph motor - Vacuum loading type by blowing motor Weighing system for sliced almond: - Stock conveyor + load cell weighing unit - Weighing range: 10 kg - 15 kg - Weighing accuracy: +/- 1/100 to 1/300 - Stock conveyor volume: 100 kg - Electric vibrator feeding type - Weighing status display on touch screen Bucket & Slide Unit: - Automatic feeding of powder & sliced almond to the mixer from hopper - 30 L hopper volume - Air type gate opening type - Slide operating by motor Liquid pumping & 2-way valve: - Preset volume transferring from current liquid tank - Mono pump type by AC servo motor - Nozzle cutter attached - PLC & touch screen control Control box: - Control the devices on the platform - Emergency stop & manual operating function - Waterproof & dust free electric panelMehr anzeigen

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Kanada
