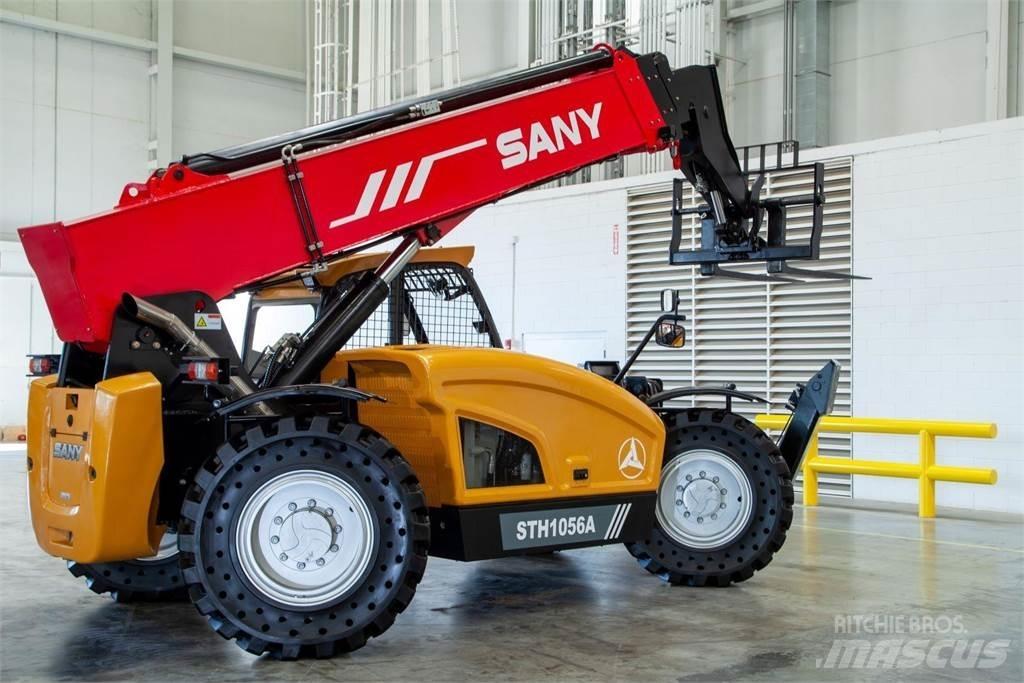

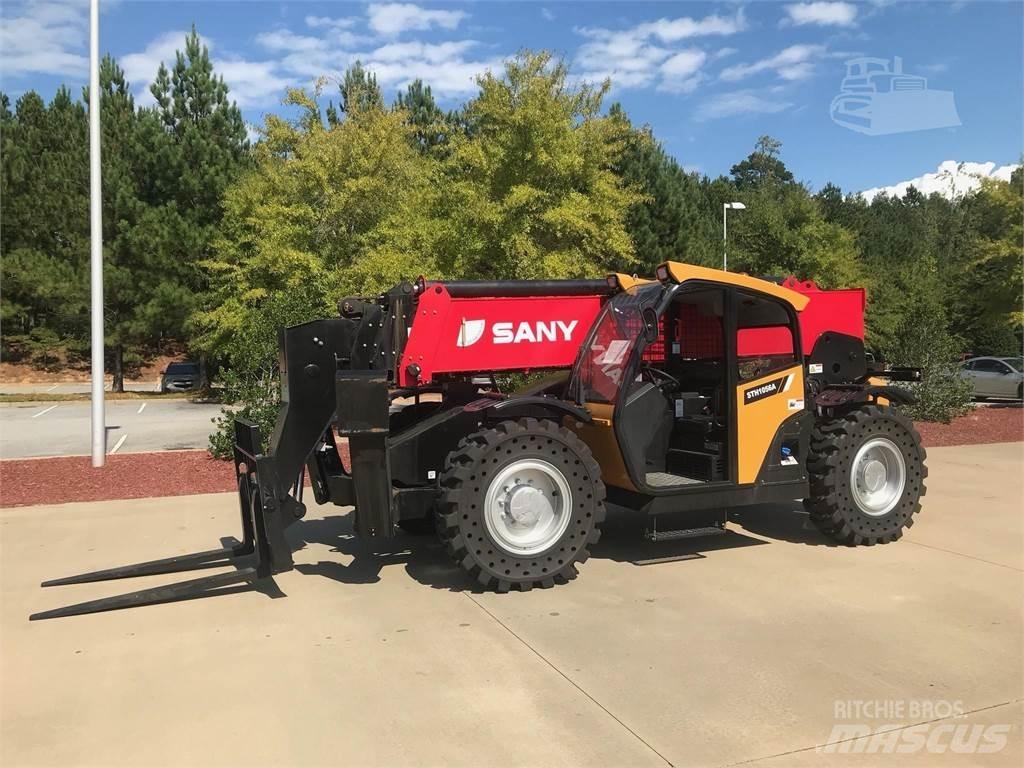

Sany STH1056A

Name: Sany STH1056A
Brand: Sany
SKU: 30CCD461
Availability: InStock

Preis ohne MwSt.

Preis auf Anfrage

Favoriten

Suche speichern

Drucken

INFO

Produktkategorie

Teleskoplader

Marke / Model

Sany STH1056A

Herstellungsjahr

2024

Maschinen Standort

Tulsa, Oklahoma

Land

USA

Mascus ID

30CCD461

DETAILS

Typ

Vierradantrieb

Dienstgewicht

15 100 kg

Motorleistung

95,6 kW (130 PS)

weitere Informationen

Description: (1) New 2023 SANY America Telehandler model STH1056A (10,000lb Capacity) with all Sandard equipment Dimensions: • Maximum Lift Height 56’ 2” 17.13 m • Maximum Forward Reach 42’ 11” 13.08 m • Height, Stowed 8’ 5” 2.56 m • Length, Stowed (without Forks) 20’ 7” 6.28 m • Width 8’ 6” 2.59 m • Wheelbase 11’ 5” 3.49 m • Ground Clearance (Center) 1’ 6” 0.46 m • Ground Clearance (Axle) 1’ 6” 0.45 m • Weight 33,290 lbs 15,100 kg Capacities: • Power 121 hp 90 kW • Torque 360 lbf-ft 488 Nm • Electrical System 24 volt • Hydraulic Tank Capacity 33 gal 124 L • Hydraulic System Capacity (with Tank) 42 gal 159 L • Fuel Tank Capacity 36 gal 135 L Components: • Engine Deutz TCD3.6 • Transmission Dana VDT12000 • Axles F/R Dana 223 / 213 • Hydraulic Pump Kawasaki Load Sense Piston Pump • Hydraulic Manifold Parker • Exhaust aftertreatment (DPF+SCR (DEF required)) PowerTrain: • Powershift transmission • Planetary limited slip axles • Full-time 4 wheel drive • Gear selector lever (Steering-column) • Manual shift • Service brake, 4-wheel, wet-disc, spring applied, hydraulic release • Parking brake, same as service brake • Cushioned solid tires Hydraulic: • Full variable load-sensing system • Single electric over hydraulic joystick controls • Axial piston pump • Hydraulic quick coupler lines for auxiliary hydraulics • Self-leveling forks • Three driver-selectable steering modes (2W, 4W, 4W-Crab) Cabin: • ISO certified ROPS/FOPS Canopy • Emergency hammer (closed cabin only) • Rubber isolated cab mounts • Fully enclosed cab with automatic heat and air conditioning • camer s Digital instrument display • Mechanical suspension seat • Seat belt, 3 inch retractable • Dual armrests • Rear-view camera • 2-speed fan • Dedicated display for rear-view Electrical: • 24v electrical system • 2-12 volt batterie Productivity: • Back up camera • Reverse sensing system • Full 4-wheel fender package • LED work lights on cab and boom • Flashing beacon • Lifting hook • Frame leveling 10 degrees side to side • Rear-Axle stabilization system • Axle-mounted front stabilizers Performance: • Maximum Lift Capacity 10,000 lbs 4 536 kg • Lift Capacity at Maximum Height 5,000 lbs 2 268 kg • Lift Capacity at Maximum Reach 3,000 lbs 1 361 kg • Boom (Raise/Lower) 14 seconds / 11 seconds • Boom (Extend/Retract) 16 seconds / 15 seconds • Frame Leveling +/- 10 degrees • Maximum Drive Speed 17 mph 28 kph • Outside Turning Radius (4WS) 14’ 1” 4.30 m • Auxiliary Hydraulic Flow 17 gpm 63 L/min • Auxiliary Hydraulic Pressure 2,466 psi 17 MPa • Standard Tire Size 14.00-24 • Warranty 3-Year or 3,000 hour “whichever comes first” Factory Warranty Options: • 60” Carriages • Forks 60” Enclosed Cab avaliable Coupler: Yes EngineMake: CUMMINS EngineModel: QSF3.8 FrontFenders: Yes Monitor: Yes ROPSType: Open TransmissionType: Powershift BaseDriveSpeed: 20 mph QuickAttach: Yes Outriggers: Yes NumForwardSpeeds: 4 NumFenders: 4Mehr anzeigen

CraneCo Crane Sales Inc.

4601 West 61st 74132 Tulsa Oklahoma USA
