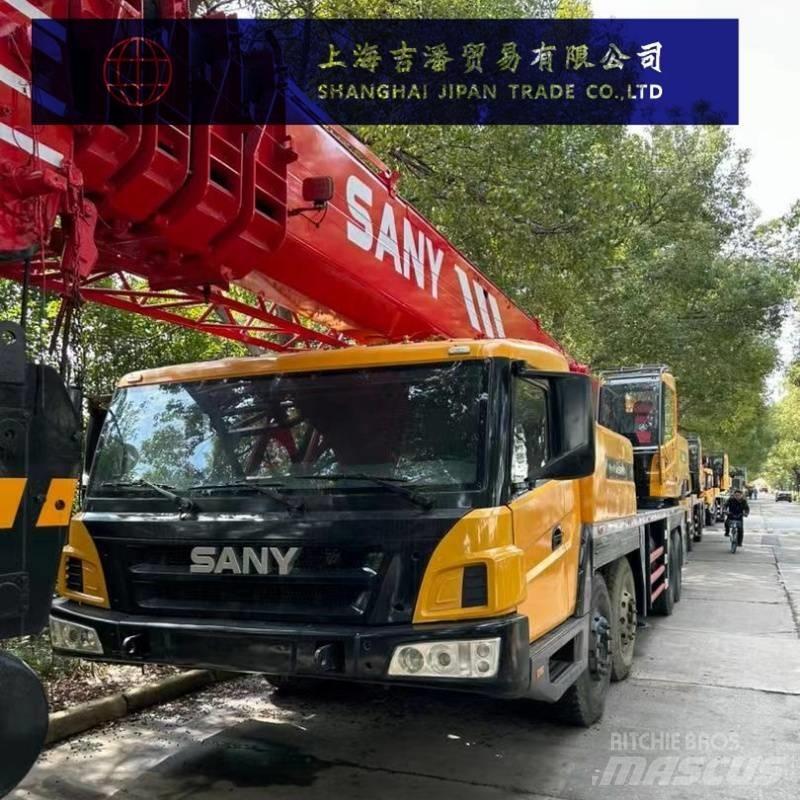

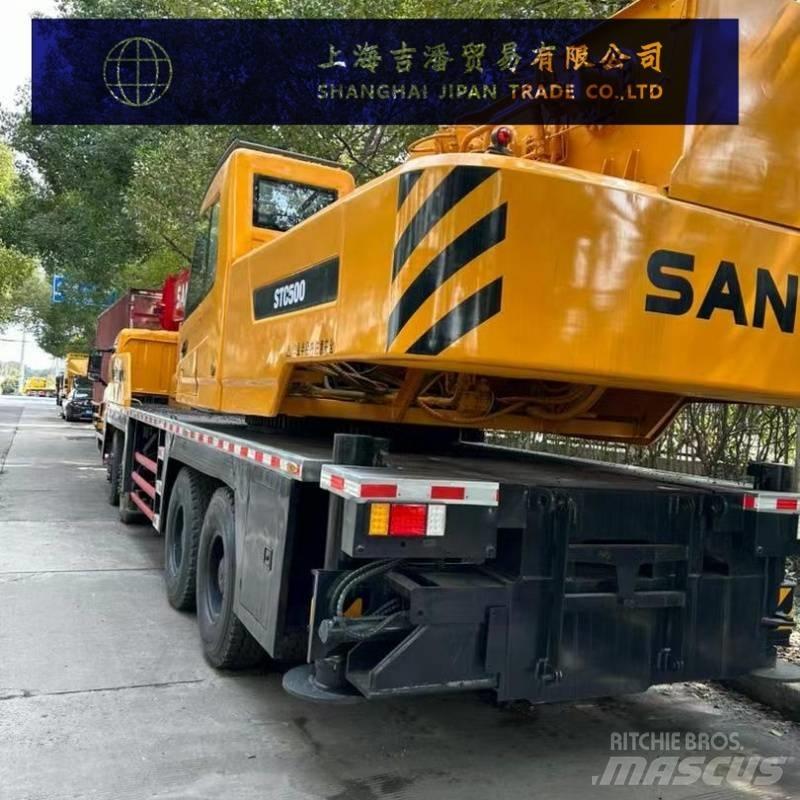

Sany STC 500

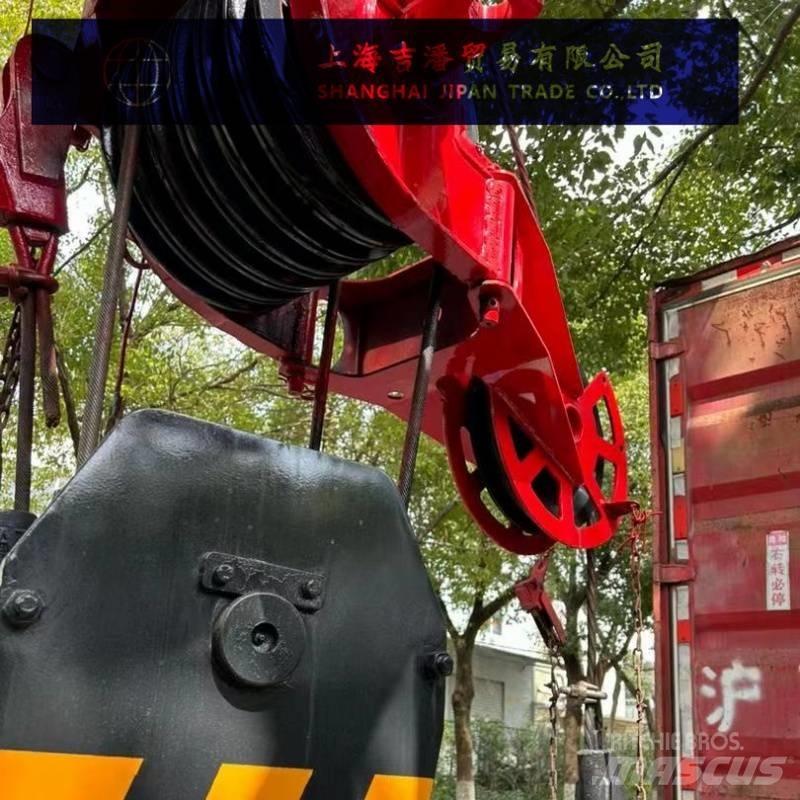

Fly Jib ,Hook ,Counter Weight, ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Detailed parameters of Sany STC500 truck crane Main performance parameters Category: Truck crane Brand: Sany Maximum lifting capacity: 55,000 kg Maximum lifting height (basic boom + auxiliary boom) : 58.8 meters Engine power: 235kw Engine brand: Shangchai Engine model: SC9DK320Q3 Rated engine speed: 2200r/min Maximum engine torque: 1250/1400N.m Minimum rated amplitude: 3m Basic arm length: 11.5 meters The maximum lifting moment of the basic boom is 1788.5kN.m The maximum lifting height of the basic boom is 12 meters The longest main arm/fully extended arm length: 42.5 meters The maximum lifting moment of the longest main boom is 840.8kN.m The maximum lifting height of the longest main boom is 42.8 meters (Longest main arm + auxiliary arm) Length: 58.5 meters The maximum lifting moment of the longest main boom + auxiliary boom: 318 KN.m Distance from the center of rotation to the rear of the chassis: 3900mm Longitudinal outrigger span: 7.2 meters The span of the transverse outriggers: 6.2 meters Boom extension/retraction time: 120/100 seconds The lifting/lowering time of the boom: 80/60 seconds Horizontal outrigger extension/retraction time: 38/20s Vertical outrigger extension/retraction time: 35/15 seconds Main lifting speed (no-load/full-load, single rope) : 130m/min Auxiliary lifting speed (no-load/full-load, single rope) : 130m/min Rotational speed: 2.4r/min Driving speed (high/low) : 76km/h Minimum turning radius: 11,000 meters Minimum turning radius of the boom head: 14,500 meters Minimum ground clearance: 243mm Approach Angle: 17° Departure Angle: 12° Braking distance: 10 meters Maximum climbing ability: 35% Fuel consumption per 100 kilometers: 45L/100km The overall mass of the machine in driving condition: 42,000 kg Number of axes: 4 Shaft load: 1600/2600kg Wheelbase: 1450/4000/1350mm Track: 2255/2048mm Overall vehicle length: 13,755mm Overall vehicle width: 2750mm Overall height: 3490mm Name of the manufacturing enterprise: Sany Automobile Crane Machinery Co., LTD
