Radkonfiguration
Einzelräder
Motorleistung
77 kW (105 PS)

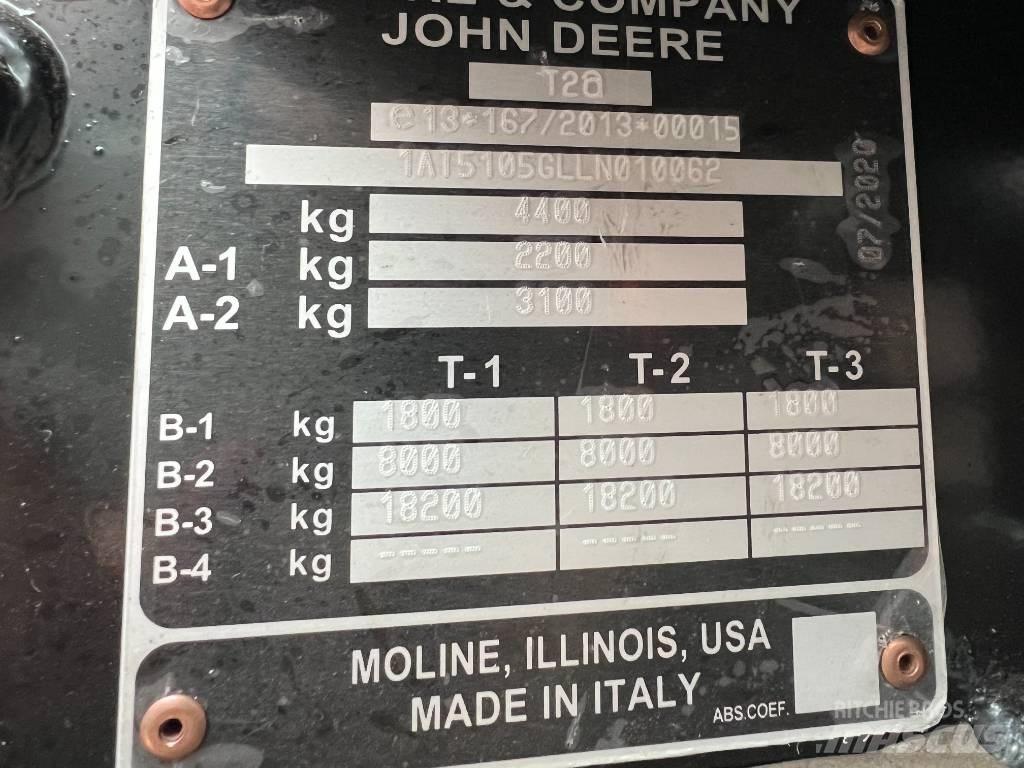

Serien Nr.
1AT5105GLLN010062
Transportabmessungen (L x B x H)
4282 x 1730 x 2480 mm
Reifenmarke
Kleber front - Mitas rear
Bereifung hinten
320/85R28
Zusatzgeräte für Frontlader
Schneeschaufel
Zusatzgeräte
Sand/salt spreader, snow plough.
weitere Informationen
Narrow CAB ( 5GV Series - Cab)
5GN Series only:
Air conditioned CAB
2 front & 2 rear H3 working lights with Openable front wind
screen and rear window
CAB Super Deluxe Seat
- Driver sensor under seat
- Seat Belt /JD Textile;
- Air Suspension
CAB Mirrors (LH + RH External)
Head Lights RH traffic
4WD Suspended Front Axle
5GN Series:
4WD Suspended Front Axle Flange to Flange 990 mm
Hydraulic Trailer Brake Valve Mech.
320/85R28 MITAS AC85
7.50R16 Super Vigne KLEBER Heavy Duty
Heavy Duty 2 Position Rims for Front Hitch & Front PTO usage
Rear Fender ExtensionWidth: 80 mm
24F / 12R 0,5 - 40 km/h, with electro-hydraulic Hi-Lo
(incl. Creeper)
- Oil cooler
- Neutral Start safety Switch
- Power Reverser Plus, de-clutch button on the gear lever
- Elect. Hyd MFWD & Diff lock actuation
- Electro hydraulic PTO actuation
Electro Hydraulic actuation 540 / 540E rpm
without GD PTO
with PTO shaft cover
with Safety start switch
- Quick Push and Pull Couplers
- Oil Spillage Collector Cup
- Flow control
Electronic Rockshaft
Includes:
- Electronic Hitch Control
- Electronic remote control
3-Point Hitch with adjustable quick couplers for draft links
Hydraulic Lift Rod
Front Hitch (CAT II)
Height adjustable Wagon Hitch EEC
sliding type, 7 positions
Tiltable / Telescopic Steering Wheel
Rear wiper
CAB Rear Mirror (Internal)
IPM 5 HP
Intelligent Power Management
Front PTO prepared Fuel Tank 54 L
For Front PTO
Steering Angle System
4WD Wet Clutch
Front PTO
Comfort Implement Control
- Electrohydraulic lateral and tilt control incl. swing and
lock function
Tool BoxMehr anzeigen
